850 Litre - Grey Water, Surface and Ground Water AquaTank Single Pump Station

AquaTank 850 Series Brochure

Install Guidance for AquaTank, Micro, Mini & Maxi Pump Stations

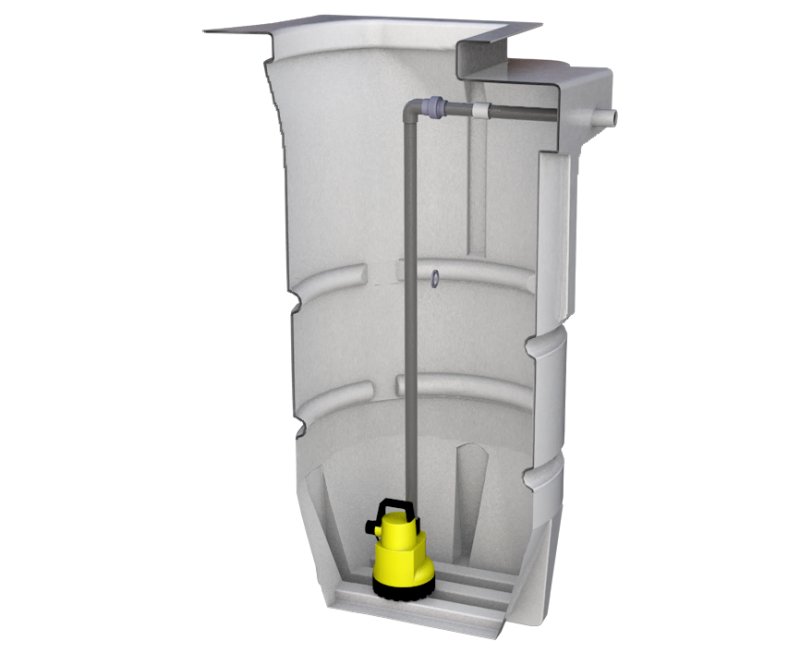

850 Litre AquaTank - Grey Water, Surface and Ground Water Single Pump Station

The Aqua Tank package pump station is designed to collect ground water via a perimeter channel or 110mm pipe and/or clear opening to the top of the chamber. The Aqua Tank comes with a single pump arrangement, the station can be supplied with an optional battery back-up system which would ensure the pump would work in a power outage.

The Aqua Tank can also collect grey water from showers and wash-hand basins but is not suitable for foul water from a W.C. (please see our pump station category). The Aqua Tank is delivered to site as a complete package, including all internal pipe work and a drainage pump. We would highly recommend that a high level alarm is fitted, which is available from us as an optional extra.

The Aqua Tank has been designed to ensure an easy problem free installation and is manufactured in high grade MDPE. The Aqua Tank comes in three different sizes 1200,1500,1800 and 2100mm deep. Suitable for Removing Grey Water From:  Final Effluent from Sewage Treatment Plants, Drainage of Cellars & Basements, Sinks, Showers, Kitchens & Dishwashers. A packaged pump station is used when gravity drainage on site cannot be achieved.

The Aqua Tank is suited for clean, dirty or slightly polluted water. This unit has been designed to pump water from a septic tank or treatment plant. Our packaged pump station systems are designed to have a 24 hour storage capacity and are manufactured to BSEN752-6 standards.

The units are available from stock. All you need is supplied so you just need to supply the pipework to and from the station, plus any fittings.  The Aqua Tank Pumping Station comes with a submersible pump with 10mm solid handling for peace of mind

Features of the Pumping Station:

Pump:

• Polypropylene Plastic
• 10mm (1 ¼'') solids handling capacity
• Coolant filled motor.
• Mechanical seal.
• 10 Meter cable.
• Max 6 Meter lift.
• Max flow 5 L/sec
• Float switch as standard.

Tank:

• Polyethylene tank.
• Screw down lid (Pedestrian rated)
• 1 x 110mm/160mm inlet seal to allow inlet to be drilled on site.
• 40mm cable duct.
• 1 ¼'' internal pipe work
• 1 ¼'' non-return valve
• 1 ¼'' quick release coupling
• 1 ¼'' cable duct

Optional Extras

To make your installation as smooth as possible, we offer some optional extras, so that when your pump station turns up, it turns up in one go and not in multiple deliveries. We offer a wide range of high level alarms, MDPE pipe, pipe connectors and many more.

Delivery

All our Sewage Pumping Station tanks are for delivery by customer offload. This entails the customer to acquire the right manpower and/or machinery to help unload the tank/s from the delivery vehicle.

If you require assistance with offloading, we may be able to offer a tail lift (lowers the tank to the ground) or HIAB (lorry with a mounted crane to winch the tank off the delivery vehicle). Please contact us if this is required for delivery.

• Product Code: DPT
• Diameter: 850mm
• Stock tank: Stock tank
• Tank Use: Below Ground
• Twin or Single: Single
