Horizontal Sewage Pump Station, Twin Pump, 12,000 litre tank


Product Ref: MAXIH12000-6M

Customer Offloading Free Delivery MDPE Sewage Twin
  • Volume: 12000ltr
  • Dimensions: L:5200mm H:2400mm
  • Current lead time 5-6 working weeks

    Home Delivery

    UK mainland delivery from FREE ex VAT

    check delivery cost

    Choose option:



    Pump Station Commissioning


    • Full system inspection
    • Levels inspection
    • Manway check for obstruction
    • Mount control panel (if not in place)
    • Check correct load to panel
    • Check correct cable size
    • Check correct power supply
    • Set the overloads
    • Lower pumps via guide rail onto stools using an A-frame if required
    • Pull pump cables through ducting
    • Pull float cables through ducting
    • Set floats to correct operating position
    • Wire cables into control panel
    • Fill system with water
    • Full test of pump station
    • Sign-off and certification
    • Warranty and documentation provided

    Product Description

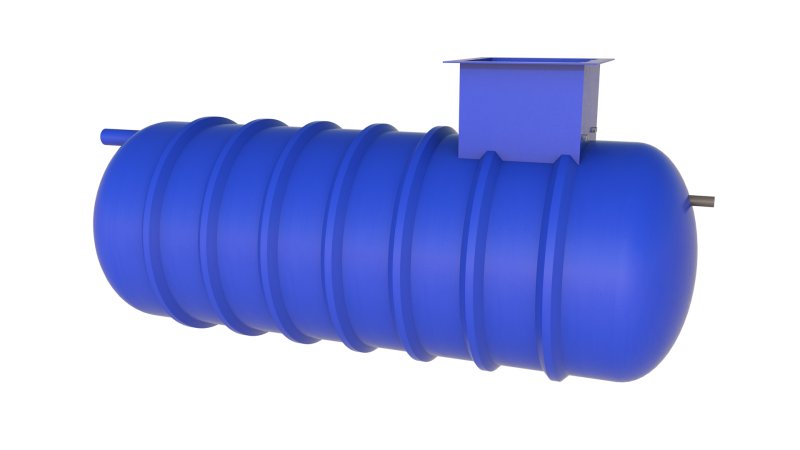

    Horizontal Sewage Pumping Station 12,000 Litres

    The Horizontal Sewage pumping stations are a range of packaged pump stations which are designed to collect foul or surface water from multiple properties or large commercial buildings.

    This made to order systems, can be manufactured to suit site specific requirements, such as taller turrets to pick up deeper incoming drains, and also precise measurements for the inlet depths can be pre-cut if required. If this is required, please contact us for more details

    All you need is supplied to you within the package, including all internal pipework, 2 sewage pumps and twin control panel and float switches. Our range of pumping stations is of a superior design and quality, to meet with BSEN75.6 requirements.

     Pump Chamber H12000
     Capacity (Litres) 12000
     Turret Height (mm) 600
     Inlet Invert Depth (mm) Variable
     Diameter (mm) 1900
     Length (mm) 5200
     Inlet Diameter 160



    All our Sewage Pumping Stations are for delivery by customer offload. This entails the customer to acquire the right manpower and/or machinery to help unload the tank/s from the delivery vehicle.

    If you require assistance with offloading, we may be able to offer a tail lift (lowers the tank to the ground) or HIAB (lorry with a mounted crane to winch the tank off the delivery vehicle). Please contact us if this is required for delivery.



    Product Details

    • Product Code: DPT
    • Customer Offloading: Customer Offloading
    • Delivery: Free Delivery
    • Material: MDPE
    • Tank Use: Sewage
    • Twin or Single: Twin
