Klargester Full Retention Separator - NSFA050 - 2780M² drainage area

Our Premium Commissioning Package offers all the benefits of standard commissioning plus the following -

Terms of Premium Commissioning package:

• Parts and Spares are not included
• Pricing is based on two engineers for a half-day service
• Additional labour may incur extra charges
• Includes to pre-site Teams call as part of the service
• Remote monitoring is including as standard
• Pricing may vary for customers in the Scottish Highlands and Islands.

*terms and conditions apply

*Please note that additional commissioning costs may apply for certain Scottish Postcodes. These charges reflect the additional logistics required for servicing these areas. To confirm if your location incurs additional fees, please contact our customer service team for further information.

Commissioning prices apply at the time of purchasing the tank. Additional commissioning charges will apply if purchased separately from the tank.

NSFA020-065 Full Retention Separators Installation - Operating Guidelines

NSFA020-065 Full Retention Separators

Klargester Benefits of Commissioning Services

Klargester Separator Service Flyer

Klargester AquaOil Bypass and Full Retention Datasheet

Kingspan Klargester Aquaoil Data Sheet

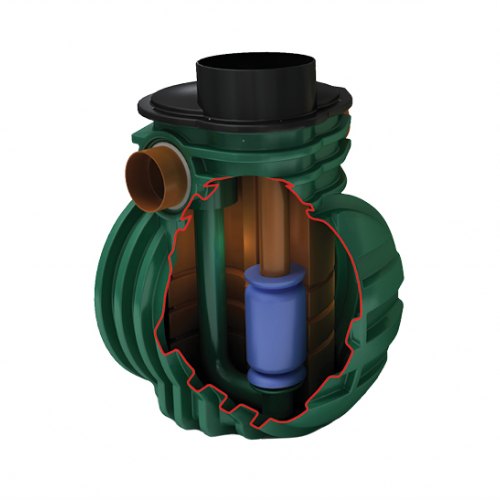

Klargester NSFA050 Full Retention Separator for 2780m² drainage area

The Klargester range of full retention separators are suitable for use in car parks, roadways, fuel distribution depots, vehicle workshops and forecourts.

Full retention separators treat the full flow that can be delivered by the drainage system. This is normally equivalent to the flow generated by the rainfall intensity of 65mm/hr. On larger sites, some short term flooding may be acceptable means of limiting the flow rate and hence the size of full retention systems.

Full Retention Separator Features

• Designed for easy installation, saving time and money
• Certified to EN858 - 1 and PPG3 for complete peace of mind
• Oil alarm probe tube available (required by EN858-1 and PPG3)
• Fitted inlet/ outlet connections
• Vent points within necks
• Maintenance from ground level
• GRP model construction - high strength and durability
• FREE premium Commissioning included with this tank – see tab for more details
• CE - Marked

NSFA050 Specifications

• Model: NSFA050
• Material: GRP Chamber Construction
• Flow (l/s): 50
• Drainage Area (m²) PPG-3 (0.018): 2780
• Storage Capacity (L) Silt: 5000
• Storage Capacity (L) Oil: 500
• Length (mm): 5425
• Diameter (mm): 2010
• Manhole Cover Dimensions (mm): 600
• Base Inlet Invert (mm): 1810
• Base to Outlet Invert (mm): 1760
• Min Inlet Invert (mm): 1000
• Standard Pipework Diameter (mm): 315

Available with Smart Commissioning

Standard commissioning as scope of works, inc supplied and fitted (at point of commissioning) Kingspan Smartserv Pro GSM telemetry alarm for complete peace of mind.

Smartserv alerts both Kingspan and designated contacts.  Includes 3 years Kingspan monitoring free of charge.

*Kingspan monitoring is for alert only.

Service/maintenance packages are available at separate cost on request.

Delivery

Kingspan Klargester Full Retention Separators are delivered on a Flat bed Arctic lorry, however they require offloading by the customer. This entails the customer to acquire the right manpower and/or machinery to help unload the tank/s from the delivery vehicle.

If you require assistance with offloading,  HIAB (lorry with a mounted crane to winch the tank off the delivery vehicle) delivery is available at an additional cost. Please contact us if this is required for delivery.

• Product Code: KLA
• Customer Offloading: Customer Offloading
• Delivery: Free Delivery
• Diameter: 2010mm
• HIAB Available: HIAB Available
• Material: GRP
• Tank Use: Below Ground

Our shipping costs cover most of the UK - however, parts of England, Scottish Highlands and Islands including areas north of the Glasgow / Edinburgh border, Isle of Wight, Channel Islands, Isle of Man, Anglesey, Western Isles, Shetland Islands, Orkney Islands, Isles of Scilly, Northern Ireland and the Republic of Ireland may cost more.

Please call before ordering if the delivery postcode is listed below. There may be additional shipping costs. AB, BT, CA, CT, DD, DG, EH, FK, G, GY, IM, IV, JE, KA, KW, KY, LD, LL, ML, PA, PH, PO 30-41 (Isle of Wight), SA, SY, TD, TN, TR, ZE Southern Ireland

Our lead times should only be used as a guide and are subject to change.

Offloading

Unless a hi-ab delivery has been booked at additional cost, it is the customer's responsibility to offload with suitable equipment on the day of delivery and a failed delivery may result in additional charges.

We recommend installers and/or plant hire & materials to install such as excavators, aggregates etc are not booked until you are in receipt of the goods. Tanks Direct cannot be held responsible for costs incurred due to unforeseen delays, please see our terms for more details.

HIAB

HIAB delivery will be required if you need the tank offloaded from the delivery vehicle. The driver will unload the tank from the vehicle to ground level, however this service is not to place the tank in situ, this will need to be arranged separately.

If you have any questions regarding your delivery, please contact the Sales Team on 01643 703358.

Please note - Certain items may not be returnable, for example those made to order or for sanitary reasons. Please check the product page for more information.

Customers may return items within 14 calendar days (as per our Terms & Conditions) - refer to section 7. **

All Items must be returned unused, refunds cannot be issued for used or previously installed items.

Please be aware that returning a tank can be complicated and expensive, so please check that you are ordering the correct item (we suggest checking the dimensions very carefully).

If you wish to return goods, please complete the form on this page to provide further information.

Once your request is approved, a valid Returns Authorisation Number (RAN) will be issued to initiate the returns process along with information on how & where to return your order along with any costs involved.

Please DO NOT return any goods without this authorisation. Goods cannot be accepted without this.

Returns are not accepted at our Minehead Office, please wait until we contact you before returning any goods.

View Tanks Direct's return policy now.
