120 Litre Sprayer Wheelbarrow Tank


Product Ref: WBU1115P

Customer Offloading
  • Volume: 120ltr
  • Weight: 52.000kg
  • Dimensions: L:1520mm W:608mm H:740mm
  • Please contact us regarding Lead time on this product

    Home Delivery

    UK mainland delivery from £52.00 ex VAT

    check delivery cost

    Choose Pump Options:


    Downloadable Documents

    Product Description

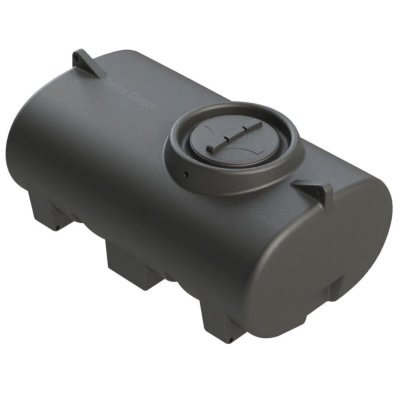

    Sprayer on 120L Wheelbarrow Tank

    Self-contained mobile Sprayer unit. 120 Litre water tank complete with Honda petrol engine driven Pump 15 Bar, Plant watering where external water supply is not available. Highly mobile, easy to handle and convenient hose reel with 20m of hose built in. The complete unit is 680mm wide, ideal to go through doorways and along narrow paths.

    This unit is great for use in public spaces where you can avoid the trip hazards of the water hose and electric cable trailing behind you. The heavy duty ‘Wheel Barrow” chassis contains the polyethene water tank, pump and hose reel with 20m Hose


    • 15 Bar max pressure
    • 11.9 Lpm max flow
    • Comet MC18 twin diaphragm pump
    • Honda GC135 petrol engine
    • 125 litre wheel barrow tank
    • 20m delivery hose on reel
    • Supplied with pressure regulator
    • Suction pipe & external filter
    • Spray lance with nozzle
    • Solid Puncture proof tyres
    • • 1520L x 608W x 740H (mm), 52 Kg


     Make  Comet
     Model  MC18 Twin Diaphragm Pump
     Flow  11.9 Lpm
     Pressure  15 Bar - 217 Psi
     Diaphragms  NBR
     Speed  1450 Rpm
     Pressure Control  Integrated Pressure Regulator
     Inlet  16mm hose barb
     Outlet  10mm hose barb
     Bypass  12mm hose barb



     Make  Honda
     Model  GP160-QX

     4.8Hp Net*

     Fuel Capacity  3.1L
     Lubrication  Oil Splash
     Oil Alert  Low level engine shutdown system
     Cooling  Air Cooled
     Fuel System  Carburettor
     Starting  Recoil
     Ignition  Transistorised Pointless
