1500 Litre Type AB Air Gap GRP Water Tank - Two Piece Insulated, Cat 5


Product Ref: PW1500-2-AB

Customer Offloading GRP Potable Rectangle Made to Order, Non Returnable Product Made to Order, Non Returnable Product Above Ground Yes
  • Volume: 1500ltr
  • Weight: 78.000kg
  • Dimensions: L:1702mm W:1202mm H:1380mm
  • Estimated Lead time 10-14 Working days

    Home Delivery

    UK mainland delivery from £138.00 ex VAT

    check delivery cost

    Choose option:


    What is a GRP tank?

    Glass Reinforced Plastic tanks are made from high quality GRP material manufactured to BS EN 13280:2001, are suitable for all cold water applications, insulated tanks are also suitable for external applications, and are fully WRAS approved.

    Product Description

    1500 Litre Type AB Air Gap GRP Water Tank - Two Piece Insulated, Cat 5 Full WRAS approval

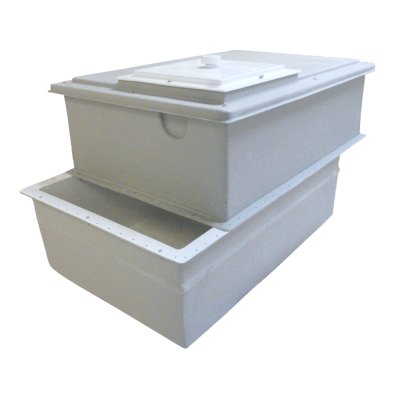

    Product Image is an example only showing a 2 piece tank with AB air gap

    Tank comes with float valve housing to suit drop arm equilibrium float valves up to 35 mm. A float valve housing that is suitable for equilibrium drop arm float valves up to 54 mm is available as an optional extra. Manufactured to meet BS7491 Parts 1 and 2, using the highest quality GRP materials, ensuring a long service life with minimal maintenance requirements.

    Manufactured to meet BS7491 Parts 1 and 2, using the highest quality GRP materials, ensuring a long service life with minimal maintenance requirements. Delivery generally 2 weeks. Grey colour as standard (other RAL or BS colours are available at additional cost). Only materials of the highest quality are used along with a highly efficient manufacturing processes. This combination ensures that these tanks are of the highest quality available. All internal surfaces, including the lid, have an Isophthalic white gel coat layer which provides a clinical smooth surface which will not support the growth of microbiological organisms. This gel coat layer is reinforced by the main GRP laminate, which provides the main structure of the tank body. The materials used are of the highest quality and applied with exacting production standards to assist in prevention of osmotic blistering. Further reinforcement is provided by square section steel tubing with fully welded corner joints. Steel reinforcement ensures that the softening and general deterioration encountered with timber supports is avoided, thus providing full structural reinforcement for the life of the tank.

    After the CFC free PU foam insulation and the steel reinforcement are fitted, the GRP outer skin is then applied. This ensures that both insulation and reinforcement are fully encapsulated and protected from external conditions. The whole tank is then coated with a tack free grey polyester gel coat layer. This ensures that the tanks are suitable for all locations and weather conditions, and can be located outdoors as standard.  Where access is a limiting factor and our one piece GRP tanks are unsuitable, a two piece tank could do the trick. These tanks are manufactured in two or more horizontally split sections, which are then assembled once the restriction has passed. In a nutshell, a one piece tank in two or more bolt together sections.

    All the components including sealant and fixings for the joint flange are supplied with the tank.  The assembly of this range of products could not be easier and should not prove difficult for any competent mechanical services engineer. These two piece tanks allow utilization of the more cost-effective one-piece type tank format, where a considerably more expensive sectional tank would traditionally have been supplied.

    Nominal capacity shown

    Nominal capacity = full capacity to top of tank

    Actual capacity = float level

    Please note: valves and fittings are supplied loose (items can be fitted to the tank for an additional fee).

    The tank is supplied with 2 low level connection pads, on the opposite end to the inlet.


    Optional steel water tank support Stand

    • Steel water tank support Stand suitable for raising the tank, allowing pump sets or other equipment to be positioned underneath.

    • Allows maximum use of the available footprint.

    • Increases the static head for applications where pressurised feed to equipment is advantageous.

    • Suitable for Two piece tanks.

    • Painted Grey Primer finish.

    • Manufactured in bolt up sections, allowing easy access and assembly

    • Supplied with ply boarding to provide a flat, solid surface for the tank base

    • 1600 x 1100 x 1100 mm (1000 mm clearance to underside)


    PW1500-2-AB Dimensions

     Internal Dimensions (L x W x H)  1500 x 1000 x 1000 mm
     External Dimensions (L x W x H)  1702 x 1202 x 1380 mm



    All our GRP tanks are for delivery by customer offload. This entails the customer to acquire the right manpower and/or machinery to help unload the tank/s from the delivery vehicle.

    If you require assistance with offloading, we may be able to offer a tail lift (lowers the tank to the ground) or HIAB (lorry with a mounted crane to winch the tank off the delivery vehicle). Please contact us if this is required for delivery.


    Does your water tank need a clean?

    Water can pose a number of risks if not maintained correctly, with this in mind we can offer the below service for your GRP tanks.

    Annual Disinfection Information and Options

    • Designed for easy installation, saving time and money

    • We can offer monthly, yearly and fixed priced packages ranging from 1-3 years

    • All work is carried out by CSCS qualified engineers

    • Tank upgrade works available, bringing the old tanks up to current regulations

    • Full tank replacement works available

    • Legionella risk assessments including schematic drawings if required

    • Microbiology analysis - water sampling via UKAS approved laboratories

    • Building flush and mains injection

    • Commissioning of booster sets

    • Servicing of water softeners and booster sets

    • Replacement of hollow roof struts.

    • Insulating of existing cold water storage tanks


    For more information regarding the annual disinfection, visit our GRP commissioning page now

    Product Details

    • Product Code: PW
    • Customer Offloading: Customer Offloading
    • Material: GRP
    • Potable: Potable
    • Shape: Rectangle
    • Stock tank: Made to Order, Non Returnable Product
    • Tank Use: Above Ground
    • WRAS: Yes

    When is a 1 piece, 2 piece or sectional tank used?

    1 & 2 piece tanks are available from 90 to 12,000 litres, sectional tanks can be supplied from 125 to 2,000,000 litres. Usually where access permits a 1 piece can be used without any assembly needed, if access is restricted a 2 piece tank can be installed and the top and bottom halved bolted together on site. Sectional tanks are for where access restrictions or other conditions deny the installation of one and two piece tanks. They consist of individual bolt-up panels which are assembled on site.
