200 Litre POLY Above Ground Water Pumping Station
Product Ref: PAG200S/AQ
Downloadable Documents
Product Description

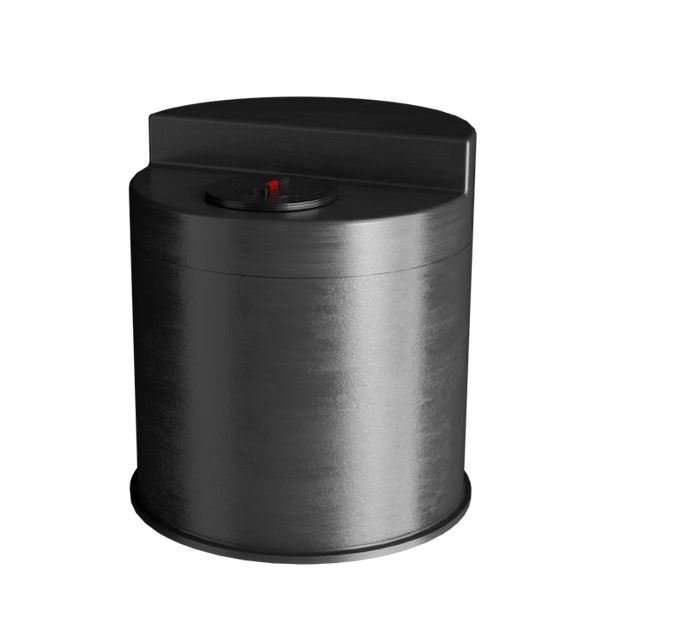

200 Litres Above Ground Single Water Pumping Station
Designed to collect and pump water from an above ground system.
A small, compact water pumping station, suitable for residential, commercial, industrial and office/professional spaces.
Clean water Pumping Station includes:
- MDPE chamber
- Soft close Non-Return Valve
- Internal 2" PVC (class C) discharge pipe work kit
- Seal for incoming and outgoing pipework (4" & 2")
- 12 months warranty
Model | PAG200S/AQ |
Capacity | 200 Litres |
Height | 735 mm |
Diameter | 680 mm |
Number of Pumps | Single or Twin |
Power Supply | 230 - 1ph - 50hz |
Rated Power | 0.43kw |
Rated Current | 1.9A |
Max Head. | 6 m |
Max Flow rate per Pump | 2.75 l/s |
Cable length | 10 m |
Max Particle Size | 10 mm |
As the system is being installed above ground, you will need to check the levels to ensure you can achieve a gravity fall into the chamber.
Delivery
All our Above ground units are for delivery by customer offload. This entails the customer to acquire the right manpower and/or machinery to help unload the tank/s from the delivery vehicle.
If you require any specific requirements regarding delivery, please call us before order is placed, where we will try and accommodate this facility for you.
Product Details
- Product Code: DPT
- Customer Offloading: Customer Offloading
- Delivery: Free Delivery
- Material: MDPE
- Tank Use: Above Ground
- Twin or Single: Single
