4000 Litre Rainwater Harvesting System

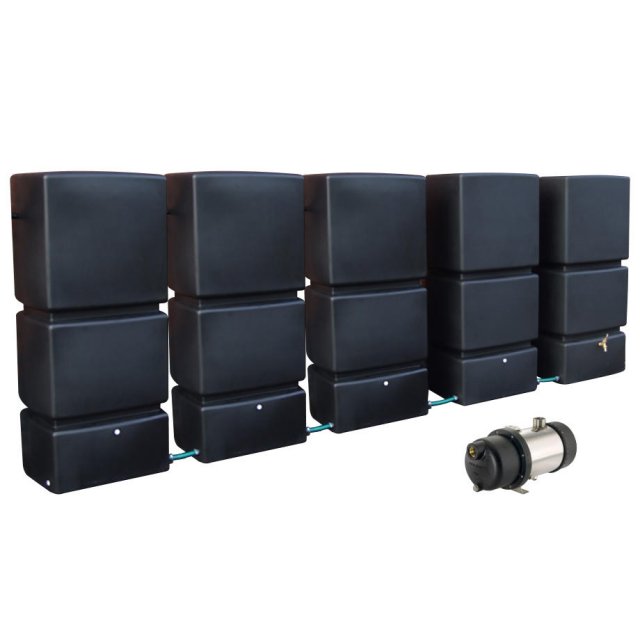

Includes: 5 x 800 Litre Tanks. 1 Filter, Site Gauge, 4 Tank to Tank Connection Kit, Garden Steel Pump (C/W pump connection set and outlet multi hosetail connector).

Tank

The Wall Tank is a rainwater tank designed to fit close onto the wall. Supplied with metal safety bracket for extra security. This bracket is mounted on the wall and prevents the tank from tilting. The inlet is made through a down pipe filter. The tanks are easily connected together using a 3/4" Tank to Tank set (25cm Long).

Filter Collector

Filters and collects rainwater for the best possible water quality. Once the tank is full the filter acts as the overflow outlet. The Filter Collector leads cleaned water to the storage tank, with high efficiency under normal rainfall. The dirty water and debris then continue on to the down-pipe. Removes leaves and so reduces the risk of disease carry-over. Eliminates sludge in your butt, less algae, less pipe blockages and enables water to be pumped safely. Fits all UK down-pipes from 65 to 100 mm (not just 65 square and 68mm round). Compatible with all water butts using the Universal Link Kit This can be purchased separately Filter is easily removed and cleaned without the need to de-mount the filter body from the down-pipe, filter cartridge pulls out to the side. Outlet adapter fits 75 mm, 50 mm (2") and 32 mm (1 1/4") hosepipes.

Steel Pump - X-AJE 80 P

• Pump body: Stainless Steel
• Motor Body: Stainless Steel
• Back Bracket: Plastic
• Shaft: Stainless Steel
• Class F Motor.
• Plastic Front and Back covers.
• Inlet:1 1/4"
• Oultet: 1"
• Temperature of pumped liquid from +2 Degrees C to +37 Degrees C (18 to 70 Farhenheit).

For further information about the other pumps available as an upgrade please refer to the pump products within rainwater harvesting accessories.

Delivery

All our Rainwater Harvesting tanks are for delivery by customer offload. This entails the customer to acquire the right manpower and/or machinery to help unload the tank/s from the delivery vehicle.

If you require assistance with offloading, we may be able to offer a tail lift (lowers the tank to the ground) or HIAB (lorry with a mounted crane to winch the tank off the delivery vehicle). Please contact us if this is required for delivery.

• Product Code: 3P
• Customer Offloading: Customer Offloading
• Delivery: Free Delivery

Our shipping costs cover most of the UK - however, parts of England, Scottish Highlands and Islands including areas north of the Glasgow / Edinburgh border, Isle of Wight, Channel Islands, Isle of Man, Anglesey, Western Isles, Shetland Islands, Orkney Islands, Isles of Scilly, Northern Ireland and the Republic of Ireland may cost more.

Please call before ordering if the delivery postcode is listed below. There may be additional shipping costs. AB, BT, CA, CT, DD, DG, EH, FK, G, GY, IM, IV, JE, KA, KW, KY, LD, LL, ML, PA, PH, PO 30-41 (Isle of Wight), SA, SY, TD, TN, TR, ZE Southern Ireland

Our lead times should only be used as a guide and are subject to change.

Offloading

Unless a hi-ab delivery has been booked at additional cost, it is the customer's responsibility to offload with suitable equipment on the day of delivery and a failed delivery may result in additional charges.

We recommend installers and/or plant hire & materials to install such as excavators, aggregates etc are not booked until you are in receipt of the goods. Tanks Direct cannot be held responsible for costs incurred due to unforeseen delays, please see our terms for more details.

HIAB

HIAB delivery will be required if you need the tank offloaded from the delivery vehicle. The driver will unload the tank from the vehicle to ground level, however this service is not to place the tank in situ, this will need to be arranged separately.

If you have any questions regarding your delivery, please contact the Sales Team on 01643 703358.

Please note - Certain items may not be returnable, for example those made to order or for sanitary reasons. Please check the product page for more information.

Customers may return items within 14 calendar days (as per our Terms & Conditions) - refer to section 7. **

All Items must be returned unused, refunds cannot be issued for used or previously installed items.

Please be aware that returning a tank can be complicated and expensive, so please check that you are ordering the correct item (we suggest checking the dimensions very carefully).

If you wish to return goods, please complete the form on this page to provide further information.

Once your request is approved, a valid Returns Authorisation Number (RAN) will be issued to initiate the returns process along with information on how & where to return your order along with any costs involved.

Please DO NOT return any goods without this authorisation. Goods cannot be accepted without this.

Returns are not accepted at our Minehead Office, please wait until we contact you before returning any goods.

View Tanks Direct's return policy now.
