Calpeda GQR 10-18 Submersible Drainage Pump (1 1/2' Vertical Port)


Product Ref: GQR 10-18

  • Weight: 17.500kg, 19.000kg
  • Dimensions: L:190mm W:247mm H:430mm
  • 1-3 Working Days Delivery

    Home Delivery

    UK mainland delivery from £20.00 ex VAT

    check delivery cost

    Choose option:

    Product Description

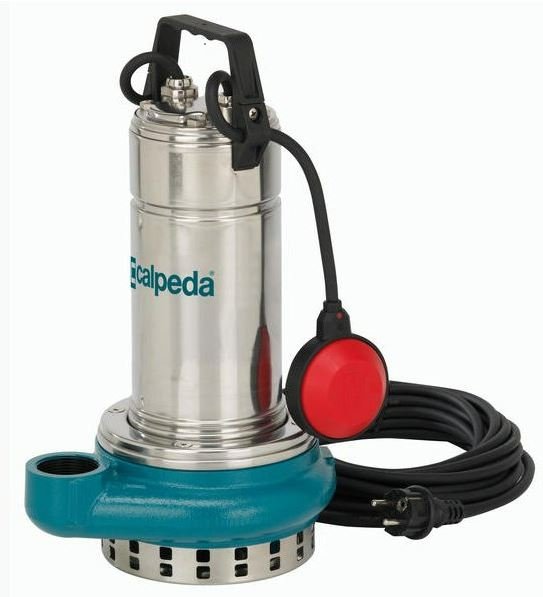

    Calpeda GQR 10-18 Submersible Drainage Pump

    The Calpeda GQR submersible drainage pump is a sinlge-impeller submersible drainage pump with a vertical delivery port with an open impeller. It has a double mechanical shaft seal with interposed oil chamber to protect against dry-running. This drainage pump has a maximum head height of 18m with a maximum pumping rate of 450 l/min.


    • For clean water containing solids up to 10 mm grain size
    • For draining rooms or emptying tanks
    • Extraction of water from ponds, streams or pits and for rainwater collection
    • For irrigation purposes


    • Cable length 10 m, pump single-phase with plug
    • Easy inspection of the capacitor area
    • Ring against accidental extraction of the cable
    • Handle in polypropylene, with frame in stainless steel
    • Easy adjustment of the float switch: to allow the adjustment of start/stop pump levels
    • The double shaft seal with oil chamber separates the motor from the water and provides further protection against accidental operation when dry
    • Chamber with food/pharmaceutical machinery oil
    • Relief valve: the pump is fitted to a relief valve for air release around the impeller, granting a proper pump priming also after long standstill period
    • G 1 1/2 vertical, upward delivery port for installation in small pits, without the need for an elbow on the pump
    • Pump casing with epoxy cataphoresis treatment joined to the external paint for a greater protection against the rust
    • Shaft in chrome-nickel stainless steel
    • Suction strainer with a double row of holes, for extra safety against clogging:it allows the passage of solids up to 10 mm
    • Impeller with epoxy cataphoresis treatment for a greater protection against the rust

    Operating conditions

    • Liquid temperature up to 35° C
    • Maximum immersion depth: 5 m
    • Minimum immersion depth: 205 mm
    • Continuous duty (with submerged motor)


    • 2-pole induction motor, 50 Hz (n ≈ 2900 rpm).
    • GQR:three-phase 230 V ± 10%; three-phase 400 V ± 10%;. Cable:H07RN-F, 4G1 mm2, length10 m, without plug.
    • GQRM:single-phase 230 V ± 10%, with float switch and thermal protector. Incorporated capacitor. Cable:H07RN-F, 3G1 mm2, length10 m, with plug CEI-UNEL 47166.
    • Insulation class F.
    • Protection IP X8 (for continuous immersion) Triple impregnation humidity-proof dry winding.
    • Constructed in accordance with:EN 60034-1; EN 60335-1, EN 60335-2-41.
