Klargester Bypass Separator - NSBE010 - 5560M² Drainage Area


Product Ref: NSBE010AG07K

  • Weight: 160.000kg
  • Dimensions: L:2070mm
  • Diameter: 1220mm
  • Home Delivery

    UK mainland delivery from FREE ex VAT

    check delivery cost


    Commissioning, Servicing & Maintenance

    Benefits of having your Kingspan Klargester product commissioned:

    • Reassurance that your system's mechanical and electrical components are in good working order

    • A warranty period that only starts when your water system is commissioned, not when it leaves the factory (terms and conditions apply)

    • Trouble-free operation of your system from the start

    Find out more about what's included in the Commissioning of your Clearwater pump station and arrange Commissioning, read Kingspan's dedicated guide to Commissioning today.

    The checks below will be carried out by a Kingspan Service Engineer and will only be checked if the unit has been installed in line with the provided installation guidelines.

    • Unit is installed flat and level with safe working area around the perimeter

    • All incoming and outgoing pipework has been connected

    • The control panel has been mounted

    • Permanent electrical supply has been fitted to the panel (extension leads or generator supplies will not be acceptable)

    • The following will then be carried out by an Authorised Service Engineer:

    • Check the system is installed to manufacturer's instruction

    • Fit floats in tank and set the levels

    • Pull float and pump cables through the ducts using drawstring provided

    • Connect pump and float cables to the control panel using appropriate glands (the panel must be within 2 m of the chamber or select “enhanced commissioning”)

    • Check float cable operation and terminate (stop, start, standby, alarm)

    • Check pump rotation

    • Run the pumps via the float switches to ensure correct operation and discharge

    • Test high level alarm and beacon (if applicable)

    • Leave on Auto for future use

    Please note, Kingspan Commissioning covers UK mainland and certain postcode areas only. Please speak to our Team for expert advice on commissioning.

    How often should my separator be serviced?

    Kingspan’s service and maintenance plans have been developed using our knowledge of a range of separators and in accordance with the Environmental Agency Pollution Prevention Guidelines and EN858-2.

    Avoid flooding and fines with cost-effective separator service plans from Kingspan Service. By regularly servicing your separators, you can reduce the pollution risk on your site. To find out more, click here

    Product Description

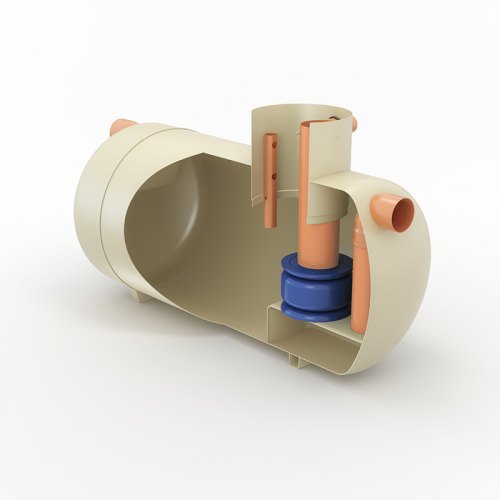

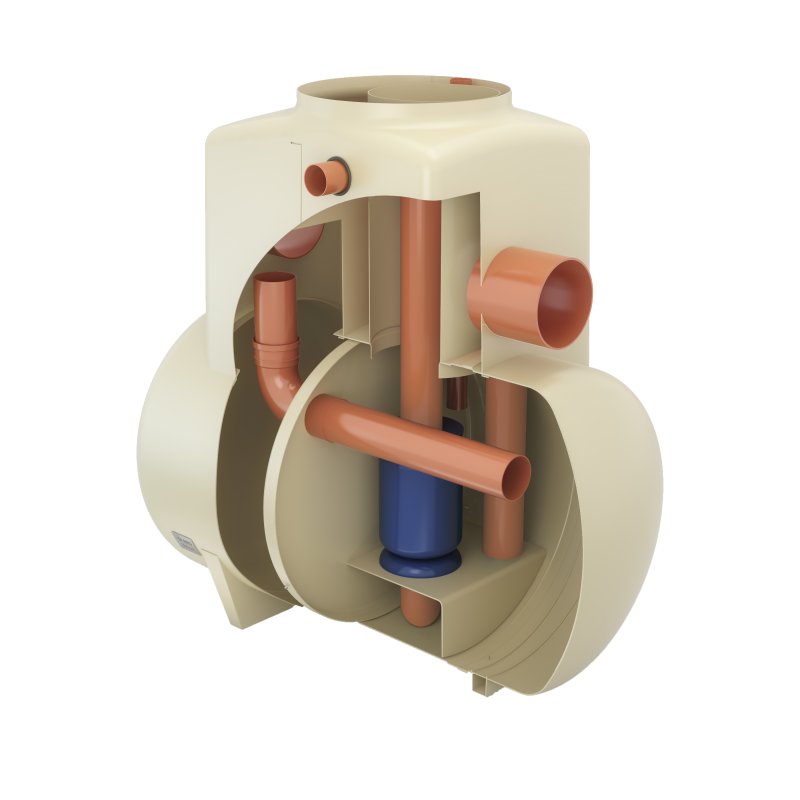

    Klargester NSBE010 Bypass Separator - 5560M² Drainage Area

    Bypass separators are used when it is considered an acceptable risk to not provide full treatment for very high flows, such as, where the risk of a large spillage and heavy rainfall occurring at the same time is small.

    Typical applications include surface car parks, roadways and lightly contaminated commercial areas.

    Product Benefits

    • Light and easy to install.

    • Inclusive of silt storage volume.

    • Fitted inlet/outlet connectors.

    • Vent points within necks.

    • Oil alarm system available (required by EN 858-1 and PPG3).

    • Extension access shafts for deep inverts.

    • Maintenance from ground level.

    • GRP construction (subject to model).

    Performance & Compliance

    • Fully compliant and tested to EN 858-1.

    • Bypass separators are tested by British Standards institute (BSI).

    • Certified flow and process performance assessing effluent qualities to the requirements of EN 858-1.

    • The unit is designed to treat the ‘first flush’ - 10% of peak flow. The calculated drainage areas served by each separator are indicated according to the formula given by PPG3 NSB = 0.0018A(m2).

    • Class I separators are designed to achieve a concentration of less than 5 mg per litre.

    NSFP003 Specifications

    • Model Reference: NSBE010

    • Material: GRP Chamber Construction

    • Flow (l/s): 10

    • Drainage Area (m2) PPG-3 (0.018): 5560

    • Storage Capacity (L) Silt: 1000

    • Storage Capacity (L) Oil: 150

    • Length (mm): 2069

    • Diameter (mm): 1220

    • Manhole Cover Dimensions (mm): 750

    • Base Inlet Invert (mm): 1450

    • Base Outlet Invert (mm): 1350

    • Min Inlet Invert (mm): 700

    • Standard Pipework Diameter (mm): 315 (Larger pipework options available on request)


    Available with Smart Commissioning

    Standard commissioning as scope of works, Inc supplied and fitted (at point of commissioning) Kingspan Smartserv Pro GSM telemetry alarm for complete peace of mind.

    Smartserv alerts both Kingspan and designated contacts.  Includes 3 years Kingspan monitoring free of charge.*

    *Kingspan monitoring is for alert only.

    Service/maintenance packages are available at separate cost on request.



    Kingspan Klargester Bypass Separators are delivered on a Flat bed Arctic lorry, however they require offloading by the customer. This entails the customer to acquire the right manpower and/or machinery to help unload the tank/s from the delivery vehicle.

    If you require assistance with offloading, HIAB (lorry with a mounted crane to winch the tank off the delivery vehicle) delivery is available at an additional cost. Please contact us if this is required for delivery.





    Our shipping costs cover most of the UK - however, parts of England, Scottish Highlands and Islands including areas north of the Glasgow / Edinburgh border, Isle of Wight, Channel Islands, Isle of Man, Anglesey, Western Isles, Shetland Islands, Orkney Islands, Isles of Scilly, Northern Ireland and the Republic of Ireland may cost more.

    Please call before ordering if the delivery postcode is listed below. There may be additional shipping costs. AB, BT, CA, CT, DD, DG, EH, FK, G, GY, IM, IV, JE, KA, KW, KY, LD, LL, ML, PA, PH, PO 30-41 (Isle of Wight), SA, SY, TD, TN, TR, ZE Southern Ireland

    Our lead times should only be used as a guide and are subject to change.


    Unless a hi-ab delivery has been booked at additional cost, it is the customer's responsibility to offload with suitable equipment on the day of delivery and a failed delivery may result in additional charges.

    We recommend installers and/or plant hire & materials to install such as excavators, aggregates etc are not booked until you are in receipt of the goods. Tanks Direct cannot be held responsible for costs incurred due to unforeseen delays, please see our terms for more details.


    HIAB delivery will be required if you need the tank offloaded from the delivery vehicle. The driver will unload the tank from the vehicle to ground level, however this service is not to place the tank in situ, this will need to be arranged separately.

    If you have any questions regarding your delivery, please contact the Sales Team on 01643 703358.

    Returns Information

    Please note - Certain items may not be returnable, for example those made to order or for sanitary reasons. Please check the product page for more information.

    Customers may return items within 14 calendar days (as per our Terms & Conditions) - refer to section 7. **

    All Items must be returned unused, refunds cannot be issued for used or previously installed items.

    Please be aware that returning a tank can be complicated and expensive, so please check that you are ordering the correct item (we suggest checking the dimensions very carefully).

    If you wish to return goods, please complete the form on this page to provide further information.

    Once your request is approved, a valid Returns Authorisation Number (RAN) will be issued to initiate the returns process along with information on how & where to return your order along with any costs involved.

    Please DO NOT return any goods without this authorisation. Goods cannot be accepted without this.

    Returns are not accepted at our Minehead Office, please wait until we contact you before returning any goods.

    View Tanks Direct's return policy now.
