Klargester Bypass Separator

Klargester Bypass Separator - NSBP004 - 2500M² Drainage Area

Product Ref: NSBP004

  • Weight: 180.000kg
  • Dimensions: L:1700mm
  • Diameter: 1350mm
  • Estimated Lead time 3-5 working days

    Home Delivery

    UK mainland delivery from FREE ex VAT

    check delivery cost

    Choose option:

    from £1,093.00 ex VAT
    (£1,311.60 inc VAT)
    Product Description

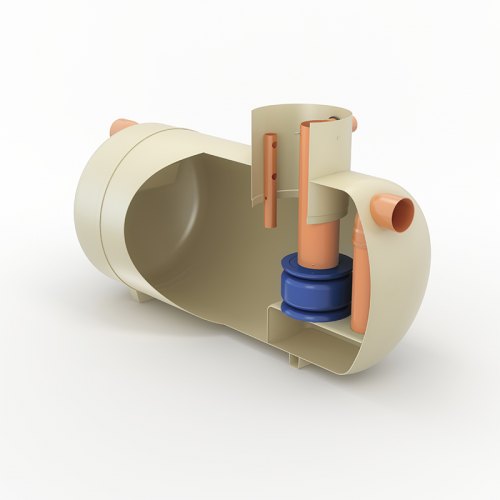

    Klargester NSBP004 Bypass Separator - 2500M² Drainage Area

    Bypass separators are used when it is considered an acceptable risk to not provide full treatment for very high flows, such as, where the risk of a large spillage and heavy rainfall occurring at the same time is small.

    Typical applications include surface carparks, roadways and lightly contaminated commercial areas.


    Product Benefits

    • Light and easy to install.
    • Inclusive of silt storage volume.
    • Fitted inlet/outlet connectors.
    • Vent points within necks.
    • Oil alarm system available (required by EN 858-1 and PPG3).
    • Extension access shafts for deep inverts.
    • Maintenance from ground level.
    • GRP or polyethylene construction (subject to model).


    Performance & Compliance

    • Fully compliant and tested to EN 858-1.
    • Bypass separators are tested by British Standards institute (BSI).
    • Certified flow and process performance assessing effluent qualities to the requirements of EN 858-1.
    • The unit is designed to treat the ‘first flush’ - 10% of peak flow. The calculated drainage areas served by each separator are indicated according to the formula given by PPG3 NSB = 0.0018A(m2).
    • Class I separators are designed to achieve a concentration of less than 5mg per litre.

    NSFP003 Specifications

    • Model Reference: NSBP004
    • Material: Polyethylene Chamber Construction
    • Flow (l/s): 4.5
    • Drainage Area (m2) PPG-3 (0.018): 2500
    • Storage Capacity (L) Silt: 450
    • Storage Capacity (L) Oil: 60
    • Length (mm): 1700
    • Diameter (mm): 1350
    • Manhole Cover Dimensions (mm): 600
    • Base Inlet Invert (mm): 1420
    • Base Outlet Invert (mm): 1320
    • Min Inlet Invert (mm): 500
    • Standard Pipework Diameter (mm): 160 (Larger pipework options available on request)

    Available with Smart Commissioning

    Standard commissioning as scope of works, inc supplied and fitted (at point of commissioning) Kingspan Smartserv Pro GSM telemetry alarm for complete peace of mind.

    Smartserv alerts both Kingspan and designated contacts.  Includes 3 years Kingspan monitoring free of charge.*

    *Kingspan monitoring is for alert only.

    Service/maintenance packages are available at separate cost on request.



    Kingspan Klaregster Bypass Separators are delivered on a Flat bed Arctic lorry, however they require offloading by the customer. This entails the customer to acquire the right manpower and/or machinery to help unload the tank/s from the delivery vehicle.

    If you require assistance with offloading,  HIAB (lorry with a mounted crane to winch the tank off the delivery vehicle) delivery is available at an additional cost. Please contact us if this is required for delivery.


    Service and Maintenance

    It is essential that you ensure your separator is properly serviced and maintained to remain compliant with EN 858-1 standard and prevent pollution due to blockages. Kingspan’s service and maintenance packages have been developed using their expert knowledge of their separators to help keep your separator operating at optimal efficiency, therefore remaining non-polluting and compliant. Visit Kingspan Service or contact the Kingspan Team on 0818 543 500 or for more information on the packages available.
