Klargester Full Retention Separator - NSFA015 - 835M² drainage area

Klargester Full Retention Separator - NSFA015 - 835M² drainage area

Product Ref: NSFA015

Customer Offloading Free Delivery HIAB Available GRP Below Ground
  • Weight: 167.000kg
  • Dimensions: L:3910mm
  • Diameter: 1225mm
  • Estimated Lead time 7-10 working days

    Home Delivery

    UK mainland delivery from FREE ex VAT

    check delivery cost

    from £1,877.00 ex VAT
    (£2,252.40 inc VAT)
    Product Description

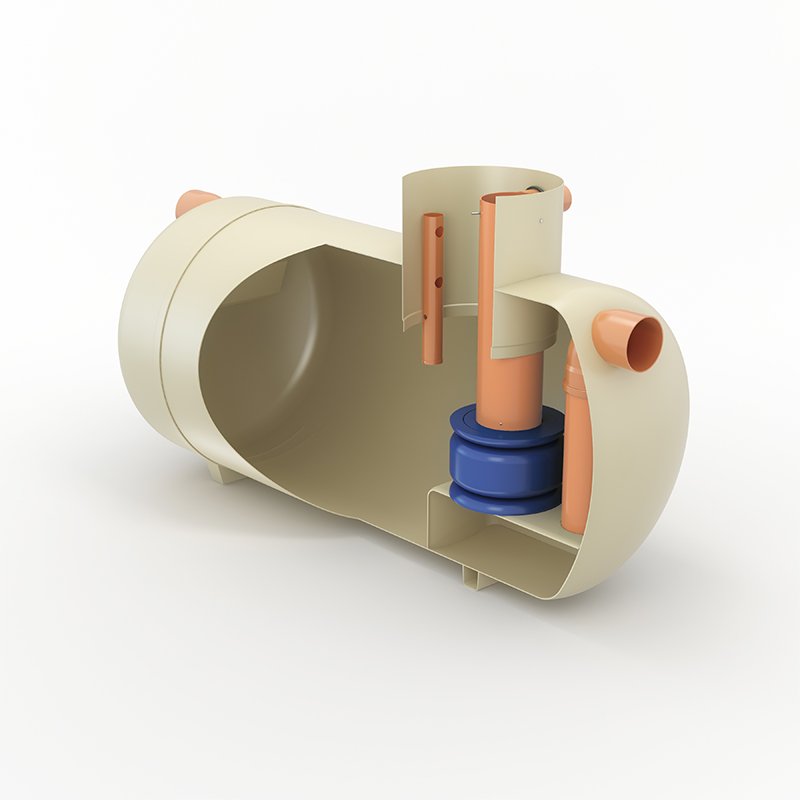

    Klargester NSFA015 Full Retention Separator for 835m² drainage area

    The Kingspan Klargester range of full retention separators are suitable for use in car parks, roadways, fuel distribution depots, vehicle workshops and forecourts.

    Full retention separators treat the full flow that can be delivered by the drainage system. This is normally equivalent to the flow generated by the rainfall intensity of 65mm/hr. On larger sites, some short term flooding may be acceptable means of limiting the flow rate and hence the size of full retention systems.


    Full Retention Separator Features

    • Designed for easy installation, saving time and money
    • Certified to EN858 - 1 and PPG3 for complete peace of mind
    • Oil alarm probe tube available (required by EN858-1 and PPG3)
    • Fitted inlet/ outlet connections
    • Vent points within necks
    • Maintenance from ground level
    • PE and GRP model construction - high strength and durability
    • CE - Marked


    Performance and compliance

    • Kingspan were one of the first UK manufacturers to have full retention separators certified to the EN 858-1 standards within the UK

    • The NSF number denotes the flow in which the separator operates

    • Approved by the British Standards Institute (BSI) in relation to flow and process performance, meeting effluent quality requirements of EN 858-1


    NSFA015 Technical Specifications

    • Model: NSFA015
    • Material: GRP Chamber Construction
    • Flow (l/s): 15
    • Drainage Area (m²) PPG-3 (0.018): 835
    • Storage Capacity (L) Silt: 1500
    • Storage Capacity (L) Oil: 150
    • Length (mm): 3910
    • Diameter (mm): 1225
    • Manhole Cover Dimensions (mm): 600
    • Base Inlet Invert (mm): 1050
    • Base Outlet Invert (mm): 1000
    • Min Inlet Invert (mm): 1000
    • Standard Pipework Diameter (mm): 200


    Available with Smart Commissioning

    Standard commissioning as scope of works, inc supplied and fitted (at point of commissioning) Kingspan Smartserv Pro GSM telemetry alarm for complete peace of mind.

    Smartserv alerts both Kingspan and designated contacts.  Includes 3 years Kingspan monitoring free of charge.*

    *Kingspan monitoring is for alert only.

    Service/maintenance packages are available at separate cost on request.



    Kingspan Klaregster Full Retention Separators are delivered on a Flat bed Arctic lorry, however they require offloading by the customer. This entails the customer to acquire the right manpower and/or machinery to help unload the tank/s from the delivery vehicle.

    If you require assistance with offloading,  HIAB (lorry with a mounted crane to winch the tank off the delivery vehicle) delivery is available at an additional cost. Please contact us if this is required for delivery.


    Service and Maintenance

    It is essential that you ensure your separator is properly serviced and maintained to remain compliant with EN 858-1 standard and prevent pollution due to blockages. Kingspan’s service and maintenance packages have been developed using their expert knowledge of their separators to help keep your separator operating at optimal efficiency, therefore remaining non-polluting and compliant. Visit Kingspan Service or contact the Kingspan Team on 0818 543 500 or for more information on the packages available.



    Our shipping costs cover most of the UK - however, parts of England, Scottish Highlands and Islands including areas north of the Glasgow / Edinburgh border, Isle of Wight, Channel Islands, Isle of Man, Anglesey, Western Isles, Shetland Islands, Orkney Islands, Isles of Scilly, Northern Ireland and the Republic of Ireland may cost more.

    Please call before ordering if the delivery postcode is listed below. There may be additional shipping costs. AB, BT, CA, CT, DD, DG, EH, FK,G, GY, IM, IV, JE, KA, KW, KY, LD, LL, ML, PA, PH, PO 30-41 (Isle of Wight), SA, SY, TD, TN, TR, ZE Southern Ireland

    Our lead times should only be used as a guide and are subject to change.


    Unless a hi-ab delivery has been booked at additional cost, it is the customer's responsibility to offload with suitable equipment on the day of delivery and a failed delivery may result in additional charges.

    We recommend installers and/or plant hire & materials for install such as excavators, aggregates etc are not booked until you are in receipt of the goods. Tanks Direct cannot be held responsible for costs incurred due to unforeseen delays, please see our terms for more details.

    If you have any questions regarding your delivery please contact the Sales Team on 01643 703358.

    Returns Information

    Customers may return items within 14 calendar days (as per our Terms & Conditions) - refer to 4.6 & 4.7. **

    Please be aware that returning a tank can be complicated and expensive so please check that you are ordering the correct item (we suggest checking the dimensions very carefully).

    If you wish to return goods, please complete the form on this page to provide further information.

    Once your request is approved, a valid Returns Authorisation Number (RAN) will be issued to initiate the returns process along with information on how & where to return your order along with any costs involved.

    Please DO NOT return any goods without this authorisation. Goods cannot be accepted without this.

    Returns are not accepted at our Minehead Office, please wait until we contact you before returning any goods.

    Please click here to request a return

    Product Specification

    • Product Code: KLA
    • Customer Offloading: Customer Offloading
    • Delivery: Free Delivery
    • Diameter: 1225mm
    • HIAB Available: HIAB Available
    • Material: GRP
    • Tank Use: Below Ground
