MiniBREAK MB1-38M-FP

Mini Break With Frost Protection Brochure

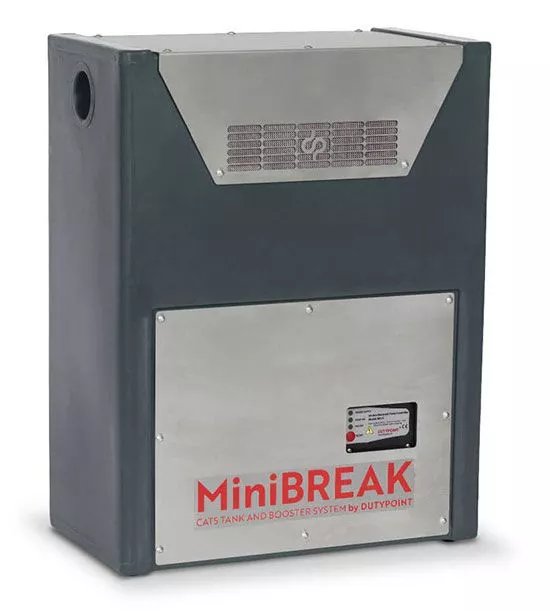

The DutyPoint MiniBREAK MB1-38M-FP - 10-005830-000

The MiniBREAK FP single-pump packaged tank and booster set with frost proection has been designed from the ground up to be compact while providing maximum fluid Category 5 backflow protection via an ‘AB’ air gap to ensure water safety is parmount. This package complies with the Water Supply (Water Fittings) Regulations 1999 and is supplied as a complete all pre-assembled in an enclosed LDPE and Stainless Steel cabinet with frost proection, suitable for either wall or floor mounting. For the MiniBREAK without frost proection, see MB1-38M-S.

Pump control is managed by a proven and intuitive controller that starts the pump when pressure falls and stops it when flow cease, all whilst ensuring the control unit also provides low-water protection to prevent dry running.

Product overview:

• Volt-free contact for pump running
• Frost Protection as standard
• IP65-rated controller
• LDPE and Stainless Steel Housing
• 18 Litre Break tank
• Low-water protection device
• Wall or floor mountable
• Single phase
• Compact design
• WRAS Approved

Applications:

• Wash down in bin stores
• Dentist’s rinsing equipment
• Laboratory water supplies
• Single hosepipe supplies

Plus any application where cat 5 protection is required - mortuaries, abattoirs, zoos, healthcare premises, etc...

Technical Specifications :

• Product Code: MB1-38M-FP
• Customer Offloading: Customer Offloading
• Delivery: Fast Delivery
• Outlet Size: 1/2" BSP Female
• Potable: Potable, WRAS Approved
• Tank Use: Water
