Sewage Pumping Station, Twin Pumps, 2400 litre tank

Sewage Pumping Station, Twin Pumps, 2400 litre tank

Product Ref: MAXIT50VP6H2400

HDPE (High density polyethylene), MDPE HDPE (High density polyethylene), MDPE Round Below Ground, Sewage Below Ground, Sewage Twin

available Estimated Lead time:2 - 3 working days

Home Delivery

UK mainland delivery from £115.00 ex VAT

check delivery cost

Choose option:

from £2,277.00 ex VAT
(£2,732.40 inc VAT)
Product Description

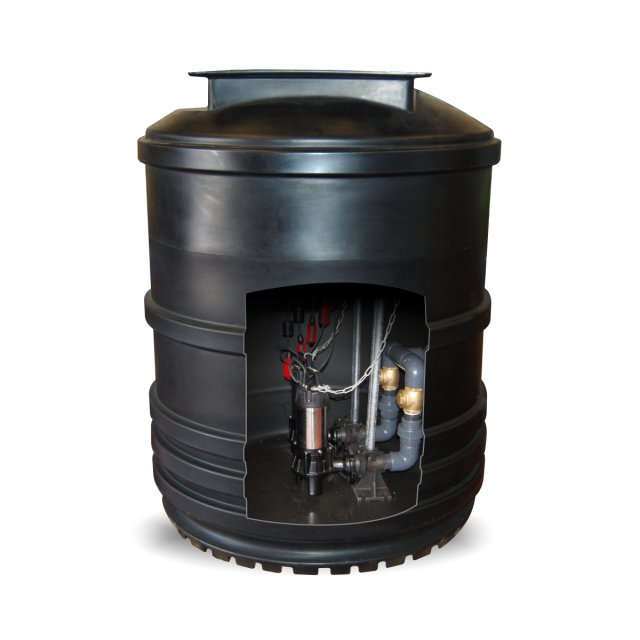

Sewage Pumping Station Twin Rigged 2300 Litre

Twin Rigged -800/1200/1700 -Package Sewage Pumping Station. A packaged pump station is used when gravity drainage on site cannot be achieved. The waste from the site flows into an underground storage chamber, where it is then pumped to the main sewer. Packaged pump stations can be used for both foul water (sewage) and surface water applications. Our packaged pump station systems are designed to have a 24 hour storage capacity and are manufactured to BSEN752-6 standards. The Twin Rigged 800/1200/1700 Pump Station is suitable for a domestic sewage pumping station for use in areas where gravity flow is not available. It can be used for various drainage applications, with the system also used for the transfer of sewage or waste water, all specially designed for easy installation. The Twin Rigged 800/1200/1700 is a compact sewage pump station suitable for small to large houses and also commercial applications. The Twin Rigged 800/1200/1700 is particularly suitable when water or sewage is collected lower than the main sewer or a septic tank system.

All you need is supplied to you within the package, so you will just need to supply the pipework to and from the station, plus any fittings. A high water alarm is supplied as standard. The Pumping Station comes with a submersible pump with 50mm solid handling for peace of mind. Our range of pumping stations is of a superior design and quality, to meet with BSEN75.6 requirements.

Cast iron/stainless steel construction
50mm (2") solids handling capacity
Coolant filled motor
Mechanical seal
10 M cable
Max 6 M lift
Max flow 5 L/sec
Float switch as standard
Twin control panel, c/w auto change over and high level alarm
4 x 10M float controls
1 x float bracket

Polyethylene tank.
Dim: 1.0M? x 1.0M D/1.0M? x 1.5M D/
1.0M x 2.0M D
Capacity 800/1200/1700L
1 x 110mm/160mm inlet seal to allow inlet to be drilled on site.
40mm cable duct.
2" internal pipe work
2" non-return valve
2" quick release coupling
2" cable duct
Special audible/visual high level alarm control box available.


Our shipping costs cover most of the UK - however, parts of England, Scottish Highlands and Islands including areas north of the Glasgow / Edinburgh border, Isle of Wight, Channel Islands, Isle of Man, Anglesey, Western Isles, Shetland Islands, Orkney Islands, Isles of Scilly, Northern Ireland and the Republic of Ireland may cost more.

Please call before ordering if the delivery postcode is listed below. There may be additional shipping costs. AB, BT, CA, CT, DD, DG, EH, FK,G, GY, IM, IV, JE, KA, KW, KY, LD, LL, ML, PA, PH, PO 30-41 (Isle of Wight), SA, SY, TD, TN, TR, ZE Southern Ireland

Returns Information

Customers may return items within 14 calendar days (as per our Terms & Conditions) - refer to 4.6 & 4.7. **

Please be aware that returning a tank can be complicated and expensive so please check that you are ordering the correct item (we suggest checking the dimensions very carefully).

If you wish to return goods, please complete the form on this page to provide further information.

Once your request is approved, a valid Returns Authorisation Number (RAN) will be issued to initiate the returns process along with information on how & where to return your order along with any costs involved.

Please DO NOT return any goods without this authorisation. Goods cannot be accepted without this.

Returns are not accepted at our Minehead Office, please wait until we contact you before returning any goods.

Please click here to request a return

Product Specification

  • Product Code: DPT
  • Colour: Black
  • Material: HDPE (High density polyethylene), MDPE
  • Shape: Round
  • Tank Use: Below Ground, Sewage
  • Twin or Single: Twin
  • Volume: 2400ltr
  • Weight: 0.010kg, 3.800kg, 6.000kg
  • Diameter: 1200mm
