Sewage Station, 190 litre tank



Product Ref: MICROS50VP6H200

Stock tank Sewage
  • Volume: 190ltr
  • Weight: 25.000kg
  • Dimensions: H:635mm
  • Diameter: 610mm
  • Estimated Lead time:1 - 2 working days

    Home Delivery

    UK mainland delivery from £37.50 ex VAT

    check delivery cost

    Choose option:

    updown

    Tank Specification

     Model  MICRO 190
     Capacity  190 Litres
     Diameter  610 mm (670 mm including lip)
     Height  635 mm
     Access Cover - Size  450 mm
     Access Cover - Rating  Pedestrian

    Video

    Product Description

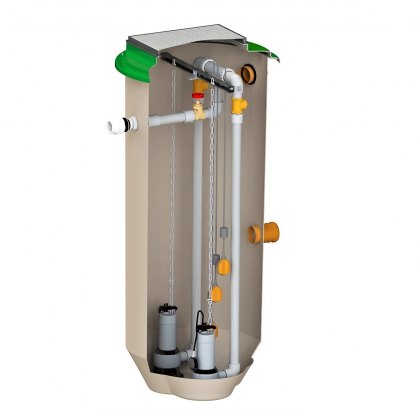

    Sewage Pump Station, 190 litre tank

    A packaged pump station is used when gravity drainage on site cannot be achieved. The waste from the site flows into an underground storage chamber, where it is then pumped to the main sewer. Packaged pump stations can be used for both foul water (sewage) and surface water applications. Our packaged pump station systems are designed to have a 24-hour storage capacity and are manufactured to BSEN752-6 standards.

    The FS Mini Micro Sewage Pump Station is suitable for a domestic sewage pumping station for use in areas where gravity flow is not available. It can be used for various drainage applications, with the mini system also used for the transfer of sewage or waste water, all specially designed for easy installation. Mini Micro is a small sewage pump station also suitable for extensions, garden rooms and small applications. Particularly suitable when water or sewage is collected lower than the main sewer or a septic tank system. All you need is supplied so you just need to supply the pipework to and from the station, plus any fittings. A high water alarm is available if required. The FS Mini Micro Pumping Station comes with a submersible pump with 50 mm solid handling for peace of mind

    Features of the Pumping Station:

    Pump:

    • Cast iron/stainless steel construction.
    • 50 mm (2") solids handling capacity
    • Coolant filled motor.
    • Mechanical seal.
    • 10 Meter cable.
    • Max 6 Meter lift.
    • Max flow 5 L/sec
    • Float switch as standard.


    Tank:

    • Polyethylene tank.
    • 190 L capacity.
    • Screw down lid (Pedestrian rated)
    • 1 x 110 mm / 160 mm inlet seal to allow inlet to be drilled on site.
    • 40mm cable duct.
    • 2" internal pipe work
    • 2" non-return valve
    • 2" quick release coupling
    • 2" cable duct
    • Special audible/visual high level alarm control box available.

    Optional Extras

    To make your installation as smooth as possible, we offer some optional extras, so that when your pump station turns up, it turns up in one go and not in multiple deliveries. We offer a wide range of high level alarms, MDPE pipe, pipe connectors and many more.







    Delivery

    All our Sewage Pumping Station tanks are for delivery by customer offload. This entails the customer to acquire the right manpower and/or machinery to help unload the tank/s from the delivery vehicle.

    If you require assistance with offloading, we may be able to offer a tail lift (lowers the tank to the ground) or HIAB (lorry with a mounted crane to winch the tank off the delivery vehicle). Please contact us if this is required for delivery.






    Product Details

    • Product Code: DPT
    • Diameter: 610mm
    • Stock tank: Stock tank
    • Tank Use: Sewage

    Customer Reviews

    By on
    "Excellent"
    Star Rating 5
    By on
    "Very good service and good quality"
    Star Rating 5
    By on
    "Brilliant service. Great product and helped me out if a big hole. Well done"
    Star Rating 5
    By on
    "Great chat support online to get the specification right and then a speedy delivery of the goods. Perfect."
    Star Rating 5
    By on
    "Good service and advice"
    Star Rating 5

    Pump Specification

    mirco-specifications

    Commissioning

    Pump Station Commissioning

    • Full system inspection
    • Levels inspection
    • Man way check for obstruction
    • Mount control panel (if not in place)
    • Check correct load to panel
    • Check correct cable size
    • Check correct power supply
    • Set the overloads
    • Lower pumps via guide rail onto stools using an A-frame if required
    • Pull pump cables through ducting
    • Pull float cables through ducting
    • Set floats to correct operating position
    • Wire cables into control panel
    • Fill system with water
    • Full test of pump station
    • Sign-off and certification
    • Warranty and documentation provided

    Delivery

    Our shipping costs cover most of the UK - however, parts of England, Scottish Highlands and Islands including areas north of the Glasgow / Edinburgh border, Isle of Wight, Channel Islands, Isle of Man, Anglesey, Western Isles, Shetland Islands, Orkney Islands, Isles of Scilly, Northern Ireland and the Republic of Ireland may cost more.

    Please call before ordering if the delivery postcode is listed below. There may be additional shipping costs. AB, BT, CA, CT, DD, DG, EH, FK, G, GY, IM, IV, JE, KA, KW, KY, LD, LL, ML, PA, PH, PO 30-41 (Isle of Wight), SA, SY, TD, TN, TR, ZE Southern Ireland

    Our lead times should only be used as a guide and are subject to change.

    Offloading

    Unless a hi-ab delivery has been booked at additional cost, it is the customer's responsibility to offload with suitable equipment on the day of delivery and a failed delivery may result in additional charges.

    We recommend installers and/or plant hire & materials to install such as excavators, aggregates etc are not booked until you are in receipt of the goods. Tanks Direct cannot be held responsible for costs incurred due to unforeseen delays, please see our terms for more details.

    HIAB

    HIAB delivery will be required if you need the tank offloaded from the delivery vehicle. The driver will unload the tank from the vehicle to ground level, however this service is not to place the tank in situ, this will need to be arranged separately.

    If you have any questions regarding your delivery, please contact the Sales Team on 01643 703358.
