Single Pump Variable Speed Booster Set, 75l/min @ 5.0 Bar

Standard commissioning process

• Mount panel into the kiosk or suitable housing location supplied / identified by others.
• Drop draw cords down the 110mm cable duct already installed by others.
• Lower the pumps down the guide rails onto the pedestals and ensure correct position.
• Pull through the float and pump cables, if a cable extension is needed, this is extended within the chamber via a junction box and pulled through with a multicore cable.
• Take a electricity supply from a type C32 rotary isolator at the location of the panel.
• Connect the power to the control panel along with the 2 pump cables and the 4 control float cables.
• Set floats are the required heights to correspond with the inlet level.
• Fill the pump station if not already full.
• Power up the control panel and turn each pump into manual using the dials to amp test each pump and set the Lmax overload setting.
• Set the dials to auto and continue to fill to test standard operation
• Remove air locks if necessary
• Check duty assist and high level alarm function
• Leave the system in full working order

Single Booster Pump Data Sheet

1-Rs506 Data sheet

Wras Approved Vari-RS brochure

Wras Approval Cert Vari-Rs

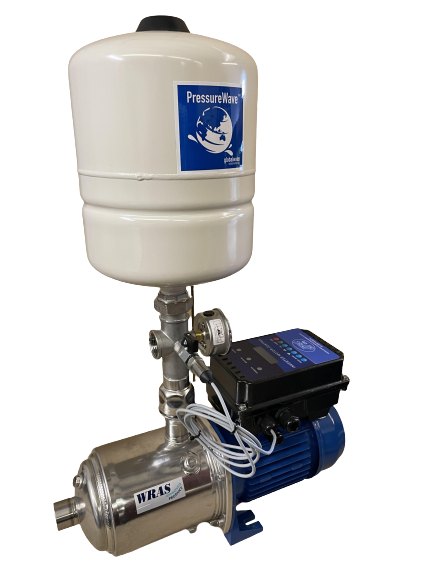

Wras Approved Single Pump Variable Speed Booster Set, 75l/min @ 5.0 Bar

The Tank's Direct single pump constant pressure cold water booster set is designed to increase the pressure of water services within a building where the existing incoming main is not sufficient. If the supply of water fails during operation, the pump automatically shuts down to prevent damage and re-starts again once water is restored. The pressure boosters are suitable for private water supply applications, particularly where constant pressure is required or where there are large fluctuations in demand.

Key Benefits

• 304 Stainless steel WRAS approved pumps
• BMS Volt Free Contacts
• Variable speed inverter
• Dry run protection
• PWB 8 litres WRAS approved pressure vessel
• Glycerine filled pressure gauge
• Tested and programmed prior dispatch
• Stainless steel Fittings
• Available in twin and triple set options
• Wras Approved

Tanks Direct also supply variable domestic & commercial twin and triple pumps, please contact us on 01643 703358.

Delivery

All our Booster sets are for delivery by customer offload. This entails the customer to acquire the right manpower and/or machinery to help unload the tank/s from the delivery vehicle.

If you require any specific requirements regarding delivery, please call us before order is placed, where we will try and accommodate this facility for you.

• Product Code: DPT
• Delivery: Free Delivery
• Potable: WRAS Approved
• Twin or Single: Single
• WRAS: Kiwa Approved, WRAS Approved Parts
