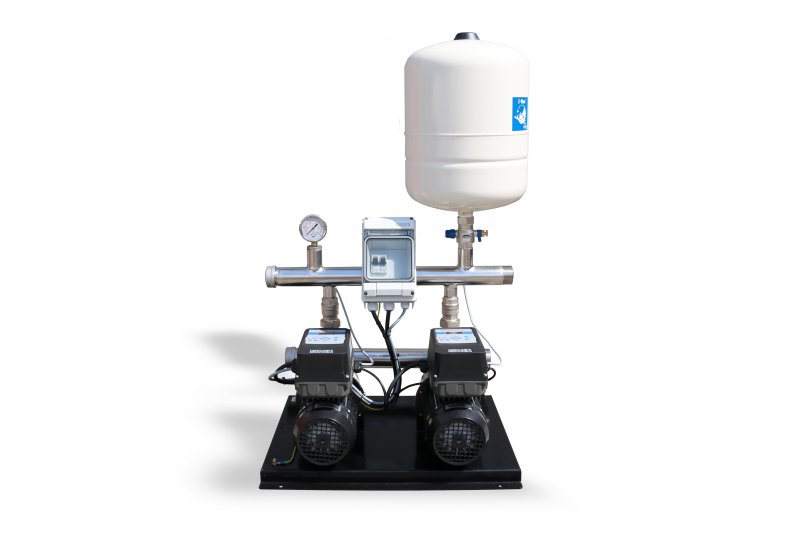

Stuart Turner Aquaboost iBolt Horizontal Twin Booster Pump 0306 2H-CMT/24 100 L/MIN @ 4.6 BAR



Product Ref: 47354

Free Delivery Twin WRAS Approved Parts
  • Weight: 52.000kg
  • Dimensions: L:620mm W:650mm H:1050mm
  • Estimated Lead time: 1-3 working days

    Home Delivery

    UK mainland delivery from FREE ex VAT

    check delivery cost

    updown

    Product Description

    Stuart Turner Aquaboost iBolt Horizontal Twin Booster Pump 0306 2H-CMT/24 100 L/MIN @ 4.6 BAR


    Aquaboost iBolt range of Twin pump 03 booster sets are capable of delivering flow rates up to 5.0m³/ hour and can produce head pressures of up to 9.0 bar. Not only does the Aquaboost iBolt 03 range feature two horizontal multistage pumps, it is also controlled by an air-cooled variable speed frequency invertors which are mounted directly onto the pump motor.

    Ideal for cold water pressure and flow boosting in a range of domestic, commercial and industrail applications.


    Key Features for the 03 range

    • Flow rates up to 10.0 m3 /h
    • Head pressure up to 9.0 bar
    • Dry run protection
    • 304 stainless steel pumps
    • 304/316 stainless steel manifold assembly
    • Nickel plated WRAS approved ball valves
    • Union fittings on suction and discharge
    • WRAS approved 24 litre pressure vessel
    • Air cooled inverters
    • Glycerine filled pressure gauge
    • Powder coated base plate
    • BMS volt free contacts



    iBolt 0306-2H-CMT/24 Technical Specifications

     Manufacturer  Stuart Turner
     Manufacturer's Warranty  2 Years
     Pump Type  Centrifugal Multistage
     Pump Control  Duty / Standby or Duty / Assist
     Inlet  2"
     Outlet  1 1/2"
     Dimensions (l x w x h)  620 x 650 x 1050 mm
     Weight   52 Kg
     Typical Noise  < 70 dB (A)
     Nominal Head  4.7 bar
     Max. Head - Closed Valve (metres)  6.7 bar
     Nominal Flow Rate  6.0 m³/ h (3 m³/ h per pump)
     Max. Flow (Litres per hour)  10.0m³/ h (5.0 m³/ h per pump)
     Pressure Vessel  24 Litres
     Max. ambient Air Temp  40 °C
     Power Supply  230 V a.c / 1 / 50 Hz
     Current Load  7.6 Amps
     Motor Type  Induction (current overload sensor)
     Duty Rating  Continuous





    Delivery

    All our Booster pumps are for delivery by customer offload. This entails the customer to acquire the right manpower and/or machinery to help unload the tank/s from the delivery vehicle.

    If you require any specific requirements regarding delivery, please call us before order is placed, where we will try and accommodate this facility for you.


    Tanks Direct also supply variable domestic & commercial twin and triple pumps, please contact us on 01643 703358.
