Shallow Dig Septic Tank Installation guide

Klargester Sigma Shallow Dig Data Sheet

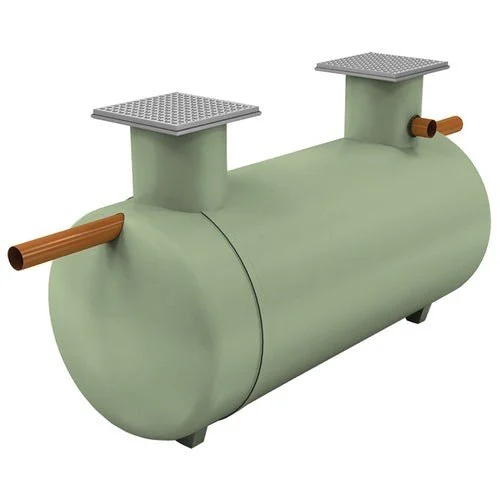

Klargester Sigma Shallow Dig 7150 Litre Septic tank

This 34 person Klargester shallow dig septic tank is the perfect choice for when sewage treatment plants, which discharge cleaned effluent into the ground, are not suitable.

This tank will store the effluent of 34 people, perfect for off-mains domestic properties, holiday homes and static caravans.

Supplied with manhole cover, pedestrian loading, up to 1.5 tonne.

Galvanised steel cover with black polypropylene frame.

To reduce costs and installation time this Klargester Sigma septic tank is shallow dig, meaning you need to excavate less of the ground where it will be installed. Save on labour costs even more on dry sites too as this septic tank can be backfilled with pea shingles. There''s no need to worry about the durability of this septic tank with pea shingles or concrete backfill as it''s manufactured from strong, chemically resistant and watertight GRP.

Supplied Comeplete with:

• 7150 Litre GRP Septic Tank


• Manhole Cover and Frame


• Inlet Invert Depth of 0.5m as Standard But Can Be increased To 1.0m or 1.5m

99.7% efficient and approved to EN12566-1, these septic tanks are the perfect upgrade from traditional cesspools as they tend to last longer, increase hygiene and have improved efficiency in the treatment of waste.

Extension Necks

The shallow dig septic tanks have two manhole shafts for ease of emptying.

Tanks have an inlet invert depth of 0.5m as standard. Upon request this may be extended up to 1.5m via neck GRP riser pieces. Risers will be required for each access shaft.

Septic Tank Regulations

View more information on septic tank regulations here.

Delivery

All the Klargester tanks are for delivery by customer offload. This entails the customer to acquire the right manpower and/or machinery to help unload the tank/s from the delivery vehicle.

If you require assistance with offloading, we may be able to offer a tail lift (lowers the tank to the ground) or HIAB (lorry with a mounted crane to winch the tank off the delivery vehicle). Please contact us if this is required for delivery.

• Product Code: KLA
• Customer Offloading: Customer Offloading
• Delivery: Free Delivery
• Diameter: 1920mm
• HIAB Available: HIAB Available
• Lid Size: 600
• Tank Use: Below Ground, Sewage

Our shipping costs cover most of the UK - however, parts of England, Scottish Highlands and Islands including areas north of the Glasgow / Edinburgh border, Isle of Wight, Channel Islands, Isle of Man, Anglesey, Western Isles, Shetland Islands, Orkney Islands, Isles of Scilly, Northern Ireland and the Republic of Ireland may cost more.

Please call before ordering if the delivery postcode is listed below. There may be additional shipping costs. AB, BT, CA, CT, DD, DG, EH, FK, G, GY, IM, IV, JE, KA, KW, KY, LD, LL, ML, PA, PH, PO 30-41 (Isle of Wight), SA, SY, TD, TN, TR, ZE Southern Ireland

Our lead times should only be used as a guide and are subject to change.

Offloading

Unless a hi-ab delivery has been booked at additional cost, it is the customer's responsibility to offload with suitable equipment on the day of delivery and a failed delivery may result in additional charges.

We recommend installers and/or plant hire & materials to install such as excavators, aggregates etc are not booked until you are in receipt of the goods. Tanks Direct cannot be held responsible for costs incurred due to unforeseen delays, please see our terms for more details.

HIAB

HIAB delivery will be required if you need the tank offloaded from the delivery vehicle. The driver will unload the tank from the vehicle to ground level, however this service is not to place the tank in situ, this will need to be arranged separately.

If you have any questions regarding your delivery, please contact the Sales Team on 01643 703358.

Customers may return items within 14 calendar days (as per our Terms & Conditions) - refer to section 7. **

Please note - Certain items may not be returnable, for example those made to order or for sanitary reasons. Please check the product page for more information.

All Items must be returned unused, refunds cannot be issued for used or previously installed items.

Please be aware that returning a tank can be complicated and expensive, so please check that you are ordering the correct item (we suggest checking the dimensions very carefully).

If you wish to return goods, please complete the form on this page to provide further information.

Once your request is approved, a valid Returns Authorisation Number (RAN) will be issued to initiate the returns process along with information on how & where to return your order along with any costs involved.

Please DO NOT return any goods without this authorisation. Goods cannot be accepted without this.

Returns are not accepted at our Minehead Office, please wait until we contact you before returning any goods.

View Tanks Direct's return policy now.
