BF Motor/Gearbox (Bauer)
Biodisc BF Motor/Gearbox (Bauer)
BF/BG Drive End Bearing (45mm)
The BF/BG Drive End Bearing (45mm) is suitable for all BF/BG Klargester BioDisc sewage treatment plants.
Price includes seals, housing, locking ring and bearing.
See images 3 & 4 for technical data on the bearing.
BF/BG Non Drive End Bearing
The BF/BG Non Drive End Bearing (45mm) is suitable for all BF/BG Klargester BioDisc sewage treatment plants.
Price includes seals, housing, locking ring and bearing.
See images 3 & 4 for technical data on the bearing.
Biodisc Cover Hinge
EMKA Cover Hinge . sold single only
Capacitor for Bauer BG10Z Motor
8SL Microfarad Motor Run Capacitor used on the BG10Z Bauer Motor Gearbox.
This motor is used on BC, BD & BE BioDisc's - motor product code is 0013114 .

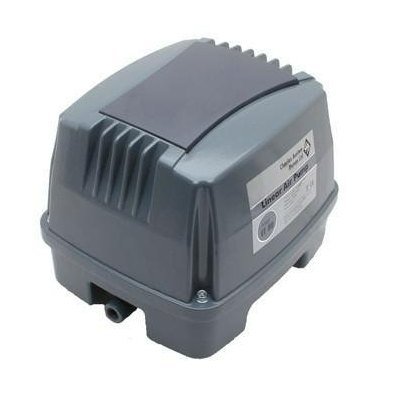

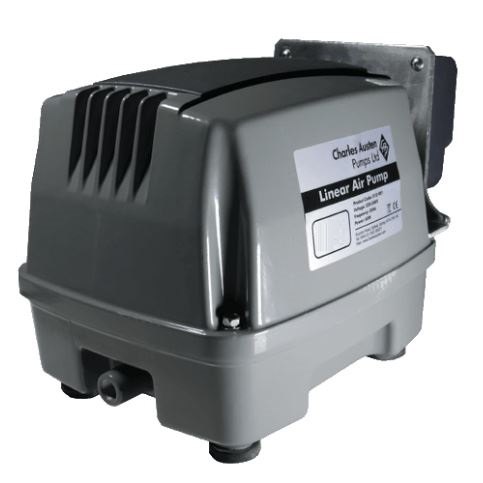

ET-120 Charles Austen Blower
ET-120 Charles Austen Blower
Latch Block - Old RBC Lids
latch block complete with bolt for old style klargester RBC unit's
M30 Nylon Washer
Nylon washer for NDE bearing fixing on a BC Biodisc
Item 40 in the picture
Magnet Only - Loss of Rotation
Magnet for Loss of Rotaion Alarm on a BioDisc.
If you need the full kit see below :-
Kingspan Parts Loss of Rotation Kit - Tanks Direct (tanks-direct.co.uk)

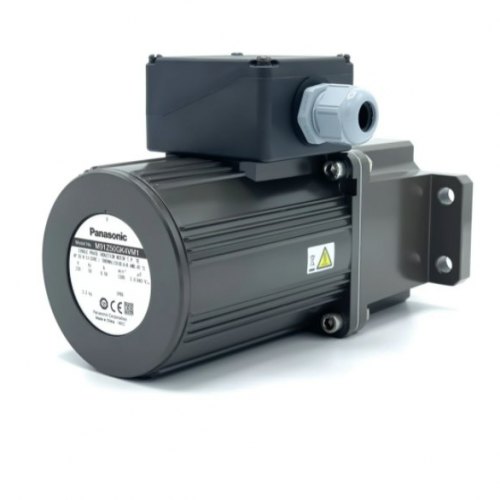

Panasonic Gearbox & Motor - OCTOBER OFFER FREE PULLEY
Klargester BA/BA-X/BB BioDisc Panasonic Motor / Gearbox
The Klargester Biodics motor/ gearbox by Panasonic is a genuine Klargester Biodisc spare part for the BA/ BA-X/ BB Biodisc sewage treatment plant.
This motor / gearbox is a direct replacement for the Vipa Motor Gearbox.
The Fully enclosed spare part for the Klargester Biodisc Sewage Treatment Plant is grease filled for smooth operation,...
Proximity / Reed Switch
Proximty Switch ONLY - used for Loss of Rotation unit's.
If you need full LOR kit see below :-
Kingspan Parts Loss of Rotation Kit - Tanks Direct (tanks-direct.co.uk)
Quarter Turn Lock
Quarter turn lock
Stephan to Panasonic Conversion Kit
This is a conversion kit to suit a peripheral drive. It includes the Panasonic Motor Gearbox, pulley & mount as well as ancillaries.
BA-BB BioDisc Drive Assembly Kit 1 (Post 2006 models)
BA-BB BioDisc Drive Assembly Kit 1 (post 2006 Models)
This is for the Post 2006 Models of the BA/BB Bio Disc. This is a basic drive assembly kit which includes the motor, capacitor belt & top pulley. If you also require the bottom pulley & locking element along with all these parts see below link :-
Kingspan Parts BA-BB BioDisc Drive Assembly Kit 3 (Post 2006 models)
The BA-BB Bio...
BA/BB BioDisc Drive Assembly Kit 2 (Pre 2006 Models)
This is for the Pre 2006 Models of the BA/BB Bio Disc. This is a basic drive assembly kit which includes the motor, capacitor belt & top pulley. If you also require the bottom pulley & locking element along with all these parts see below link :-
Kingspan Parts BA-BB Biodisc Drive Assembly Kit 4 (Pre 2006 models)
The BA-BB Bio Disc Drive Assembly Kit 2 includes :-
x1 Panasonic Motor-Gearbox...
BA-BB BioDisc Drive Assembly Kit 3 (Post 2006 models)
This is for the Post 2006 Models of the BA/BB Bio Disc. This is a full drive assemlbly replacement kit including the motor, capacitor, belt, both pulleys & locking element.
The BA-BB Bio Disc Drive Assembly Kit 3 includes :-
x1 Panasonic Motor-Gearbox - 0015500
x1 Short 1120mm Belt - 0012828
x1 Top Pulley - 0013725
x1 Bottom Pulley - 0600082
x1 Locking Element - 0013170
x1...
BA-BB Biodisc Drive Assembly Kit 4 (Pre 2006 models)
This is for the Pre 2006 Models of the BA/BB Bio Disc. This is a full drive assemlbly replacement kit including the motor, capacitor, belt, both pulleys & locking element.
The BA-BB Bio Disc Drive Assembly Kit 4 includes :-
x1 Panasonic Motor-Gearbox - 0015500
x1 Long 1600mm Belt - 0012828
x1 Top Pulley - 0013725
x1 Bottom Pulley - 0600082
x1 Locking Element - 0013170
x1 3uf...
1600mm BA/BB Biodisc Belt (pre 2006)
Klargester BA/BB replacement 1600mm BioDic Belt
Replacement heavy duty drive belt to suit Klargester BA/BB BioDiscs manufactured pre 2006.
1120mm BA/BB Biodisc Belt (post 2006)
Klargester BA/BB replacement 1120mm BioDic Belt
Replacement heavy duty drive belt to suit Klargester BA/BB BioDiscs manufactured post 2006.
Top Pulley for BA/BB BioDisc Sewage Treatment Plant
Top Pulley for BA/BB BioDisc Sewage Treatment Plant Top Pulley suitable for the motor shaft of the Klargester BA/BB BioDisc Sewage Treatment Plant.
BA/BB BioDisc Bottom Pulley
Bottom pulley to suit the Klargester BA, BA-X and BB BioDisc Sewage Treatment Systems.
Please note that the locking device is required with this part
Pictured with the locking element in place
BA/BB Pulley Locking Element
BA/BB Bottom Pulley Locking Element
BA/BB Chain Conversion Kit
This Kit is to convert a Belt Drive BA-BB unit to Chain Drive ( 1009104 )
0017026- x1 Top Pinion
0013194 - x1 Chain Wheel
0017306 - x5ft Chain & 0017307 x1 Chain Link
0013170 - x1 Locking Element
Dry Guard BA/BB/BC BioDisc
The dry guard fits to the gearbox support beam and protects the pulley system from water ingress.
Suits BA ,BB & BC BioDisc's
BA/BB Bearing Kit
Full BA-BB BioDisc Bearing Replacement Kit.
Includes :
0600038 - 1/2 Nylon Drive End Bearing
0600079 - Whole Drive End Bearing
0600039 - Retaining Plate
0303328 - Bearring Retaining Plate
0303464 - Metal Backing Plate
Whole Bearing for BA/BB BioDisc
Whole Bearing for BA/BB BioDiscA complete, one piece nylon bearing to suit the drive end of the Klargester BioDisc Ba, BA-X and BB Sewage Treatment Plants.
BA/BB 1/2 Nylon Bearing
This is a Klargester half bearing to fit the non-drive end of a Klargester BioDisc BA/BB Sewage Treatment System.
Klargester BA/BB Bearing Retaining Plate
Klargester BA/BB Bearing Retaining PlateBearing retaining plate for non-drive end on BioDisc BA/BB/BAX.
Nylon Retaining Plate
Retaining plate to hold the front whole bearing in place on the BA-to BC unit.
Multi Purpose Greasomatic Cartridge
utomatically delivering lubricant in the simplest, most efficient and most economical way.
What is a GREASOMATIC?
A self-ejecting canister of lubricant designed to screw into a grease nipple socket or other lubrication point, and discharge its content of 120 ml of lubricant in a controlled continuous flow, for a preselected period of between one month and twelve months. It is completely self...
Grease Adaptor Brush Fitment for Chain
Grease adaptor to apply grease to the chain on the BD to BG style biodisc unit's.
BA - BB BioDisc - Nylon Washers
**PRICE IS FOR SINGLE WASHER**
BA / BB BioDisc Nylon spacer washers used for the shaft.
We recommend to order x6 in total.
Kingspan Green Control Panel E0401K
This is a small green control panel which includes alarm facilities. If there is a fault with your unit, this panel will indicate the problem with a fault code.
The box is suitable for all BioDisc & BioTec units.
Battery Pack for Green Control Panel
Replacement battery pack for Green Control Panel.
3.15 amp fuse for Green Panel
3.15amp Motor-Blower fuse for the Small Green Control Panel.
**Price is for 1 fuse **
5 amp Fuse for Green Panel
5amp Motor-Blower fuse for the small Green Control Panel.
**PRICE IS FOR X1 FUSE**
3 UF Capacitor for Panasonic Motor
3UF Capacitor which suits the Panasonic Motor Gearbox ( Klargester BA/BA-X/BB Biodisc Panasonic Motor Gearbox - Tanks Direct (tanks-direct.co.uk) )
Klargester Float Switch/High level Alarm for pump chambers
Klargester Float Switch for pump chambers
The Klargester float switch is used to activate the pump or High Level alarms in pump stations. The float is designed to float on sewage to ensure it triggers the pumps to lower levels in your Sewage Treatment Plant.
Comes with 10 meters of cable
BG Biodisc Duplex Chain - 2 Metres
The BG 3/4" duplex drive chain is suitable for all Klargester BG BioDiscs (2m length)
BD/BF Duplex Drive Chain - 102 pitches
The BD/BF 5/8" duplex drive chain is suitable for all Klargester BD/BE/BF BioDiscs (2m length)
BD/BE Bearing Bush Half
This is a bearing bush half for a 40mm Diameter shaft. Suitable for Klargester BD/BE Biodisc. We recommend this is ordered with part 600058-A.
BD/BE Bearing
The BD/BE Half Bearing is suitable for 40mm diameter shafts in all Klargester BD/BE BioDisc Sewage Treatment Systems.
This listing is for one single half bearing (Each Biodisc contains 2)
BD/BE Locking Element for Biodisc
The BD/BE Locking Element for Biodisc is suitable for all Klargester BD/BE BioDisc Sewage Treatment Systems.
The locking element fits into the centre of the pulley and makes sure it is secured to the BioDisc shaft.
BD/BE Top Pulley for Biodisc
The BD/BE top pulley is a standard width (25mm) top pulley suitable to fit the motor shaft on a Klargester BD/BE BioDisc Sewage Treatment Systems.
The BD/BE top pulley comes with a grubscrew for smooth operation.
BF Bottom Pulley for Biodisc
The BF BioDisc Bottom Pulley fits the main media shaft on all Klargester BF BioDisc Sewage Treatment Systems.
A BF BioDisc Locking Element is also available separately, to lock the sprocket onto the shaft.
Loss of Rotation Kit
The Klargester (Kingspan) loss of rotation alarm is suitable for all Klargester gravity BioDiscs. This kit will help you to identify if the discs are failing to rotate and then determine if you need to arrange servicing of your BioDisc system.
BG Motor Gearbox (Bauer)
This Bauer BG40 Motor/Gearbox is used with the Klargester BG Biodisc units.
Supply: 230V/50Hz/1PH
Output power: 0.180 kW
Output torque: 280 Nm
Output speed: 6.1 rpm
