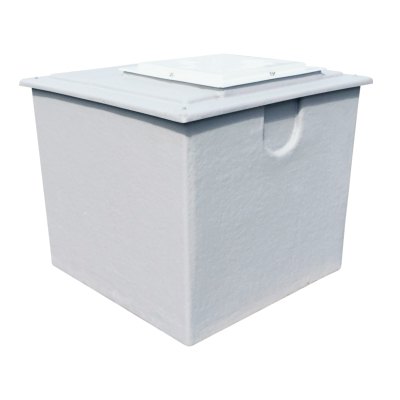

1501 Litre GRP Water Tank, Insulated

1501 Litre GRP Water Tank, Insulated

Product Ref: PW1501-1

Customer Offloading GRP Potable Square Above Ground Yes
  • Volume: 1500ltr
  • Weight: 120.000kg
  • Dimensions: D:1180mm W:1180mm H:1593mm
  • Estimated Lead time:10 - 14 working days

    Home Delivery

    UK mainland delivery from £88.00 ex VAT

    check delivery cost

    updown
    from £1,053.00 ex VAT
    (£1,263.60 inc VAT)
    Product Description

    1501 Litre GRP Water Tank - Insulated (25mm) Full WRAS approval.


    Manufactured to meet BS7491 Parts 1 and 2, using the highest quality GRP materials, ensuring a long service life with minimal maintenance requirements. Grey colour as standard (other RAL or BS colours are available at additional cost). Only materials of the highest quality are used along with a highly efficient manufacturing processes. This combination ensures that these tanks are of the highest quality available.

    All internal surfaces, including the lid, have an Isophthalic white gelcoat layer which provides a clinical smooth surface which will not support the growth of microbiological organisms. This gelcoat layer is reinforced by the main GRP laminate which provides the main structure of the tank body. The materials used are of the highest quality and applied with exacting production standards to assist in prevention of osmotic blistering. Further reinforcement is provided by square section steel tubing with fully welded corner joints. Steel reinforcement ensures that the softening and general deterioration encountered with timber supports is avoided, thus providing full structural reinforcement for the life of the tank. After the CFC free PU foam insulation and the steel reinforcement are fitted, the GRP outer skin is then applied. This ensures that both insulation and reinforcement are fully encapsulated and protected from external conditions.

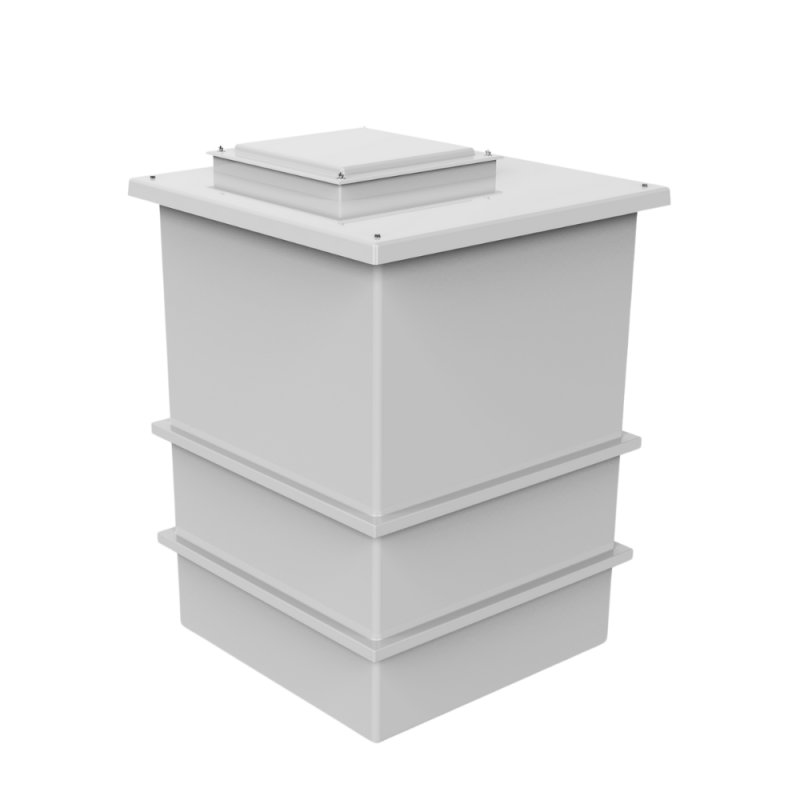

    Where access is a limiting factor and our one piece GRP tanks are unsuitable a two piece tank could do the trick. These tanks are manufactured in two or more horizontally split sections which are then assembled once the restriction has passed. In a nutshell and a one piece tank in two or more bolt together sections. All of the components including sealant and fixings for the joint flange are supplied with the tank.
    The assembly of this range of products could not be easier and should not prove difficult for any competent mechanical services engineer.

    Nominal capacity shown
    Nominal capacity = full capacity to top of tank
    Actual capacity = float level

    Please note: valves and fittings are supplied loose (items can be fitted to the tank for an additional fee).

    The Encapsulated Baseboard will come moulded into the internal base of the tank to become part of the tanks construction and overall strength of the base. This will benefit the tank if its on uneven surfaces or positioned raise supports. It will not come supplied as a separate item

    Tank is supplied with 2 low level connection pads, on the opposite end to the inlet.



    Optional steel water tank support Stand

    - Steel water tank support Stand suitable for raising the tank, allowing pump sets or other equipment to be positioned underneath.
    - Allows maximum use of the available footprint.
    - Increases the static head for applications where pressurised feed to equipment is advantageous.
    - Suitable for One piece tanks.
    - Painted Grey Primer finish.
    - Manufactured in one piece
    - Supplied with ply boarding to provide a flat solid surface for the tank base
    - 1100 x 1100 x 1100mm (1000mm clearance to underside)



    PW1501 Specifications

     Internal Dimensions (LxWxH)  1000 x 1000 x 1500mm
     External Dimensions (LxWxH)  1180 x 1180 x 1595mm



    Delivery

    All our GRP tanks are for delivery by customer offload. This entails the customer to acquire the right manpower and/or machinery to help unload the tank/s from the delivery vehicle.

    If you require assistance with offloading, we may be able to offer a tail lift (lowers the tank to the ground) or HIAB (lorry with a mounted crane to winch the tank off the delivery vehicle). Please contact us if this is required for delivery.



    Does your water tank need a clean?

    Water can pose a number of risks if not maintained correctly, with this in mind we can offer the below service for your GRP tanks.


    Annual Disinfection Information and Options

    • Designed for easy installation, saving time and money
    • We can offer monthly, yearly and fixed priced packages ranging from 1-3 years
    • All work is carried out by CSCS qualified engineers
    • Tank upgrade works available, bringing the old tanks up to current regulations
    • Full tank replacement works available
    • Legionella risk assessments including schematic drawings if required
    • Microbiology analysis - water sampling via UKAS approved laboratories
    • Building flush and mains injection
    • Commissioning of booster sets
    • Servicing of water softners and booster sets
    • Replacement of hollow roof struts.
    • Insulating of existing cold water storage tanks

    For more information regarding the annual disinfection, please click here

    What is a GRP tank?

    Glass Reinforced Plastic tanks are made from high quality GRP material manufactured to BS EN 13280:2001, are suitable for all cold water applications, insulated tanks are also suitable for external applications, and are fully WRAS approved.

    Delivery

    Our shipping costs cover most of the UK - however, parts of England, Scottish Highlands and Islands including areas north of the Glasgow / Edinburgh border, Isle of Wight, Channel Islands, Isle of Man, Anglesey, Western Isles, Shetland Islands, Orkney Islands, Isles of Scilly, Northern Ireland and the Republic of Ireland may cost more.

    Please call before ordering if the delivery postcode is listed below. There may be additional shipping costs. AB, BT, CA, CT, DD, DG, EH, FK,G, GY, IM, IV, JE, KA, KW, KY, LD, LL, ML, PA, PH, PO 30-41 (Isle of Wight), SA, SY, TD, TN, TR, ZE Southern Ireland

    Our lead times should only be used as a guide and are subject to change.

    Offloading

    Unless a hi-ab delivery has been booked at additional cost, it is the customer's responsibility to offload with suitable equipment on the day of delivery and a failed delivery may result in additional charges.

    We recommend installers and/or plant hire & materials for install such as excavators, aggregates etc are not booked until you are in receipt of the goods. Tanks Direct cannot be held responsible for costs incurred due to unforeseen delays, please see our terms for more details.

    If you have any questions regarding your delivery please contact the Sales Team on 01643 703358.

    Returns Information

    Customers may return items within 14 calendar days (as per our Terms & Conditions) - refer to 4.6 & 4.7. **

    Please be aware that returning a tank can be complicated and expensive so please check that you are ordering the correct item (we suggest checking the dimensions very carefully).

    If you wish to return goods, please complete the form on this page to provide further information.

    Once your request is approved, a valid Returns Authorisation Number (RAN) will be issued to initiate the returns process along with information on how & where to return your order along with any costs involved.

    Please DO NOT return any goods without this authorisation. Goods cannot be accepted without this.

    Returns are not accepted at our Minehead Office, please wait until we contact you before returning any goods.

    Please click here to request a return

    Product Specification

    • Product Code: PW
    • Customer Offloading: Customer Offloading
    • Material: GRP
    • Potable: Potable
    • Shape: Square
    • Tank Use: Above Ground
    • WRAS: Yes
    • WRAS Approved: Yes
