GS2 Installation and Specification

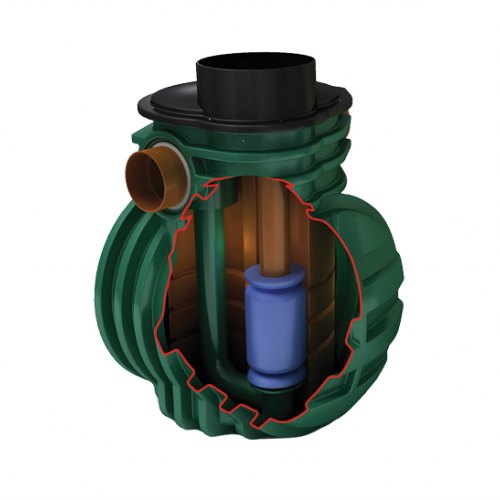

Grease Separator 1800 Litres GS2 for below ground installation

• Lightweight rotational moulded HDPE construction
• Designed for larger catering and meat processing facilities e.g. hotels, factories and abattoirs
• Separates and retains Fats, Oils and Greases (FOG's)
• Settles high density solids
• Promotes clean and free running drains
• Conventional connections to ?110 and 160 mm pipework

The GS range of grease separators provides a large volume of liquid to slow down the flow of hot greasy water. This extended retention time permits suspended FOG's (Fats, Oils and Greases) to cool and separate, floating to form a waste layer at the surface. Larger solids and particles sink and settle to form a sludge layer in the base of the unit. Baffles/dip pipes allow the cleaner stream of water to continue to flow to waste.

Cleaning and maintenance

The GS range of separators are designed for containment and NOT treatment. Secondary products and dosing systems are available, introducing chemicals/enzymes that can break down the accumulated Fats, Oils and Grease. Regrettably, there is no definitive way of calculating the levels of solids and FOG that may enter the system, given the variety of applications and influent from differing catering facilities. Subsequently, all passive grease traps require regular service and removal of accumulated controlled1 waste for environmental disposal by registered waste carriers.

• Optional pedestrian rated lockable cover
• Optional riser extensions
• Low Maintenance
• Durable and Robust
• High Strength HDPE Plastic
• Easy Installation. For installation, please make sure it is backfilled with Concrete

Delivery

All our Grease Separators are for delivery by customer offload. This entails the customer to acquire the right manpower and/or machinery to help unload the tank/s from the delivery vehicle.

If you require assistance with offloading, we may be able to offer a tail lift (lowers the tank to the ground) or HIAB (lorry with a mounted crane to winch the tank off the delivery vehicle). Please contact us if this is required for delivery.

• Product Code: OE
• Colour: Black
• Customer Offloading: Customer Offloading
• Diameter: 1260mm
• Material: HDPE (High density polyethylene)
• Shape: Round
• Tank Use: Below Ground
