2 1/2'' Twin Pump Booster Set, MH 48 - MAB

Free Delivery

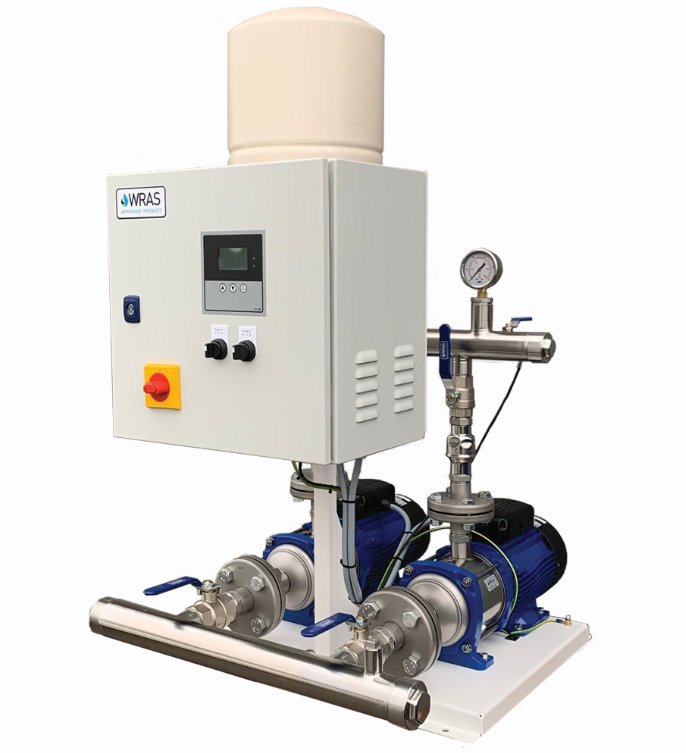

Stuart Turner 2 1/2'' Twin Pump Booster Set, MH 48 - MAB

2 1/2'' Twin Pump Booster Set, MH 48 - MAB

Product Ref: SP2V-10HM04S-MAB-M/24

Free Delivery Twin Yes

Home Delivery

UK mainland delivery from FREE ex VAT

check delivery cost

from £4,465.00 ex VAT
(£5,358.00 inc VAT)
Downloadable documents

pdfTwin Pump - Lowara MAB Data Sheet

Product Description

MAB Cold Water Booster sets

Tank Direct Ltd offer variable speed booster sets one to three pumps and up to 5.5KW with our MAB variable speed control panel.

Designed for commercial applications, i.e. hotels, schools, colleges, office blocks, nursing homes & hospitals etc.

All MAB booster sets have MODBUS front of house protocol software as standard & BACNET is also an optional extra if required with existing operating systems.

All our sets are built to a compact design and quiet running. Suction & discharge manifolds are in 304 stainless steel. All MAB sets can be supplied with an optional WRAS approved break tank sized to suit demand. The panels have password protection, soft start safety function, anti-seize facility & manual mode for fixed speed emergency supply.
The MAB panel can also be retro fitted to any existing fixed speed booster set, either freestanding or wall mounted.


• 304 Stainless steel WRAS approved pumps.
• BMS Volt Free Contacts
• Automatic Cascade mode
• Dry run protection
• 304/316 Stainless steel manifolds and fittings
• Brass nickel plated WRAS approved ball valves
• Union fittings on suction and discharge for easy disassemble
• PWB 24 litres WRAS approved pressure vessel
• Glycerine filled pressure gauge
• Common powder coated baseplate
• All wired, tested and programmed prior dispatch


 Supply Voltage 230v - 1ph - 50hz +/- 10%
 Motor P2 (kW) 2 x 1.5
 Max Flow (L/Min) 460
 Max Head (Meters) 48
 Full Load Current (Amps) 11.8


Option: Stainless steel inlet & outlet flexible connector, (recommended over rigid pipe when installing tank away from booster set)
Tanks Direct also supply variable domestic & commercial single to six pumps, please contact us on 01643 – 703358.


Our shipping costs cover most of the UK - however, parts of England, Scottish Highlands and Islands including areas north of the Glasgow / Edinburgh border, Isle of Wight, Channel Islands, Isle of Man, Anglesey, Western Isles, Shetland Islands, Orkney Islands, Isles of Scilly, Northern Ireland and the Republic of Ireland may cost more.

Please call before ordering if the delivery postcode is listed below. There may be additional shipping costs. AB, BT, CA, CT, DD, DG, EH, FK,G, GY, IM, IV, JE, KA, KW, KY, LD, LL, ML, PA, PH, PO 30-41 (Isle of Wight), SA, SY, TD, TN, TR, ZE Southern Ireland

Our lead times should only be used as a guide and are subject to change.


Unless a hi-ab delivery has been booked at additional cost, it is the customer's responsibility to offload with suitable equipment on the day of delivery and a failed delivery may result in additional charges.

We recommend installers and/or plant hire & materials for install such as excavators, aggregates etc are not booked until you are in receipt of the goods. Tanks Direct cannot be held responsible for costs incurred due to unforeseen delays, please see our terms for more details.

If you have any questions regarding your delivery please contact the Sales Team on 01643 703358.

Returns Information

Customers may return items within 14 calendar days (as per our Terms & Conditions) - refer to section 7. **

Please be aware that returning a tank can be complicated and expensive so please check that you are ordering the correct item (we suggest checking the dimensions very carefully).

If you wish to return goods, please complete the form on this page to provide further information.

Once your request is approved, a valid Returns Authorisation Number (RAN) will be issued to initiate the returns process along with information on how & where to return your order along with any costs involved.

Please DO NOT return any goods without this authorisation. Goods cannot be accepted without this.

Returns are not accepted at our Minehead Office, please wait until we contact you before returning any goods.

Please click here to request a return

Product Specification

  • Product Code: FW
  • Delivery: Free Delivery
  • Outlet Size: 2" BSP Male
  • Twin or Single: Twin
  • WRAS: Yes
