40,000 Litre Underground Water Tank


Product Ref: TS400/40600

GRP Made to Order, Non Returnable Product Made to Order, Non Returnable Product Below Ground
  • Volume: 40600ltr

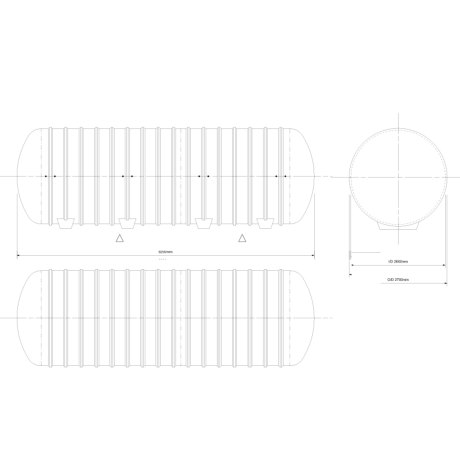

  • Dimensions: L:8200mm
  • Diameter: 2700mm
  • Estimated Lead time:5 - 6 weeks

    Custom Delivery Required

    Delivery price on application.

    Request a quote

    Product Description

    40600 Litre (8798 Gallon) Underground water tank.

    - Stormwater attenuation
    - Fire fighting sprinkler reservoirs
    - Potable water storage
    Septic/settlement tanks
    Cesspools and silage effluent holding tanks
    - Rainwater Storage
    - Accidental spillage containment
    - Transformer oil dump tanks
    - Package pumping chambers

    These underground tanks are filament wound by the technically advanced chop hoop filament winding process (patented) which was chosen after careful investigation proved it produced the most desirable GRP underground tanks. This process produces not only circumferential strength as found in helical wound tanks, but also longitudinal strength. The interlaminar shear strength permits tanks to be cut for manholes and pipework without any undue loss in strength.

    The manufacturing process is carefully monitored with a digital read out system. Chopping glass, winding glass, the resin-rich inner layer and main laminate resins are kept within specification parameters thus minimising human error. Each tank has a smooth moulded resin-rich corrosion barrier inner layer and an external resin-rich water penetration barrier. These layers can incorporate special resins to meet specific applications where the contents are highly corrosive or a potable water approved resin system is required or where surrounding soil is heavily contaminated.

    Quality control procedures require each tank to be carefully inspected and tested. Ultrasonic thickness readings, material content weights, etc are checked and recorded against the tankand#8217s unique serial number. Additional periodic laminate. Testing is carried out by independent testing facilities including stress and strain analysis and also physical property tests to meet specific design criteria. Being manufactured in glass reinforced plastics, underground tanks are light, easy to handle and easy to install. They are not susceptible to rust, exhibit excellent corrosion resistant properties and have a life expectancy in excess of 50 years. The smooth internal moulded finish provides good flow characteristics and enables easy desludging and cleaning operations.

    Product Details

    • Product Code: SP
    • Diameter: 2700mm
    • Material: GRP
    • Stock tank: Made to Order, Non Returnable Product
    • Tank Use: Below Ground


    Our shipping costs cover most of the UK - however, parts of England, Scottish Highlands and Islands including areas north of the Glasgow / Edinburgh border, Isle of Wight, Channel Islands, Isle of Man, Anglesey, Western Isles, Shetland Islands, Orkney Islands, Isles of Scilly, Northern Ireland and the Republic of Ireland may cost more.

    Please call before ordering if the delivery postcode is listed below. There may be additional shipping costs. AB, BT, CA, CT, DD, DG, EH, FK, G, GY, IM, IV, JE, KA, KW, KY, LD, LL, ML, PA, PH, PO 30-41 (Isle of Wight), SA, SY, TD, TN, TR, ZE Southern Ireland

    Our lead times should only be used as a guide and are subject to change.


    Unless a hi-ab delivery has been booked at additional cost, it is the customer's responsibility to offload with suitable equipment on the day of delivery and a failed delivery may result in additional charges.

    We recommend installers and/or plant hire & materials to install such as excavators, aggregates etc are not booked until you are in receipt of the goods. Tanks Direct cannot be held responsible for costs incurred due to unforeseen delays, please see our terms for more details.


    HIAB delivery will be required if you need the tank offloaded from the delivery vehicle. The driver will unload the tank from the vehicle to ground level, however this service is not to place the tank in situ, this will need to be arranged separately.

    If you have any questions regarding your delivery, please contact the Sales Team on 01643 703358.

    Returns Information

    Please note - Certain items may not be returnable, for example those made to order or for sanitary reasons. Please check the product page for more information.

    Customers may return items within 14 calendar days (as per our Terms & Conditions) - refer to section 7. **

    All Items must be returned unused, refunds cannot be issued for used or previously installed items.

    Please be aware that returning a tank can be complicated and expensive, so please check that you are ordering the correct item (we suggest checking the dimensions very carefully).

    If you wish to return goods, please complete the form on this page to provide further information.

    Once your request is approved, a valid Returns Authorisation Number (RAN) will be issued to initiate the returns process along with information on how & where to return your order along with any costs involved.

    Please DO NOT return any goods without this authorisation. Goods cannot be accepted without this.

    Returns are not accepted at our Minehead Office, please wait until we contact you before returning any goods.

    View Tanks Direct's return policy now.
