Clearwater E9 BTA Sewage Treatment Plant 9 People

To ensure your system operates to maximum efficiency, we recommend tried and tested Commissioning by our own British Water and Safe Building trained engineers.

Our unrivalled knowledge means that we are best placed to carry out bespoke assessments to get your system up and running. The commissioning will also provide you with a unique checklist against your system, ensuring your complete peace of mind and reassurance that your system's mechanical and electrical components are in good working order.

The checks below will be carried out by a Kingspan Service Engineer and will only be checked if the unit has been installed in line with the provided installation guidelines.

• Check Plant is level, 5 mm tolerance
• Confirm the ground around the plant is level, flat and that the lid securely fastens
• Confirm the panel has been mounted correctly
• Make the required connections to the panel using correct glands
• Make all electrical connections within the tank
• Ensure all safety guards are fitted
• Sat all greasomatics within the plant (if applicable)
• Check belt/chain tension and alignment
• Check pump float activates freely (pumped discharge only)
• Check operation of sludge return pump (nitrification plants only)
• Check direction of disc pacCheck levels within unit
• Test and set any Alarms supplied with the unit

If the BioTec BTAUE has been purchased, commissioning includes the above plus:

• Check the air blower is secure
• Set forward feed airlift (larger plants)
• Make sure there is adequate air supply
• Connect all airlines and set valves
• Make sure BioZones have adequate air supply
• Wire and set timer solenoid for sludge return (if applicable)

On completion, they will provide a site specific commissioning certificate

Find out more about what's included in the commissioning of your Clearwater pump station and arrange Commissioning, read Kingspan's dedicated guide to Commissioning today.

*terms and conditions apply

Kingspan-bta-biotec-certificate

Clearwater btau1-btau5 Installation Operation Guidelines

BTAUE2-BTAUE3 Gravity Sales Drawing

BTAUE2-BTAUE3 IPS Sales Drawing

Clearwater Product Catalogue 2022

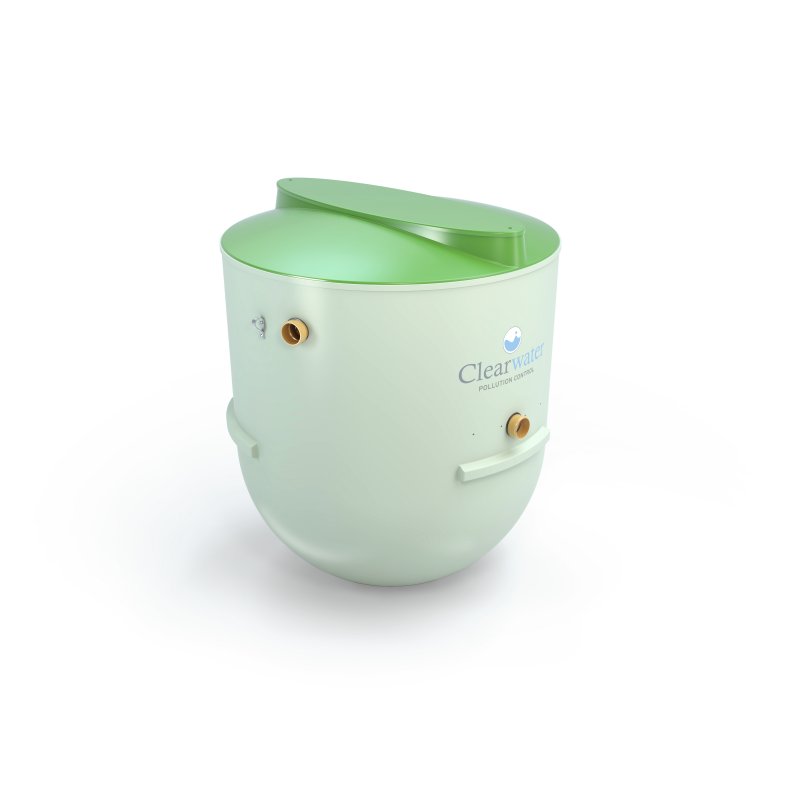

Clearwater E Range Sewage Treatment System 9 Person

The Clearwater E Range is the economical off-mains solution for single houses and uses the tried and tested aerobic biological process for the treatment of domestic sewage.

The Range now comes with improved effluent quality with higher BOD5 and TSS removal than older Clearwater E range models.

Clearwater E Range sewage treatment systems are ideal for single/multiple houses and employ the well proven aerobic biological trickling filter process for the treatment of sewage.

Easy to install, this Clearwater E9 system is suitable for a population of 9 people.

Clearwater E9 - Key Features

• Isolator & Failure Light
• Easy to install and maintain with annual desludging.
• Improved effluent quality with higher BOD5 and TSS removal than older Clearwater E range models.
• Third party certified to EN12566-3 standard for assured performance
• CE marked

Technical Data

• Population Equivalent:   9 person
• Outside diameter:   1.85 m
• BOD Load (kg/day):   0.36
• Two inlet depth options to choose from: 1.0 m (as standard) and 1.5 m
• Pipework diameter:   110 mm
• Standard power supply:   Single phase
• Blower (kW):  0.04
• Weight (approximate):   275 kg (1.0 m Gravity) / 305 kg (1.5 m Pumped)
• Pumped outlet: 50 mm MDPE compression fitting

Performance and Compliance

• Certified to BS EN 12566 Part 3 standard.
• BOD5 -96.2%; SS - 97%; Ammonia - 82.4%;
• Fully CE marked in line with the CPR 2013.
