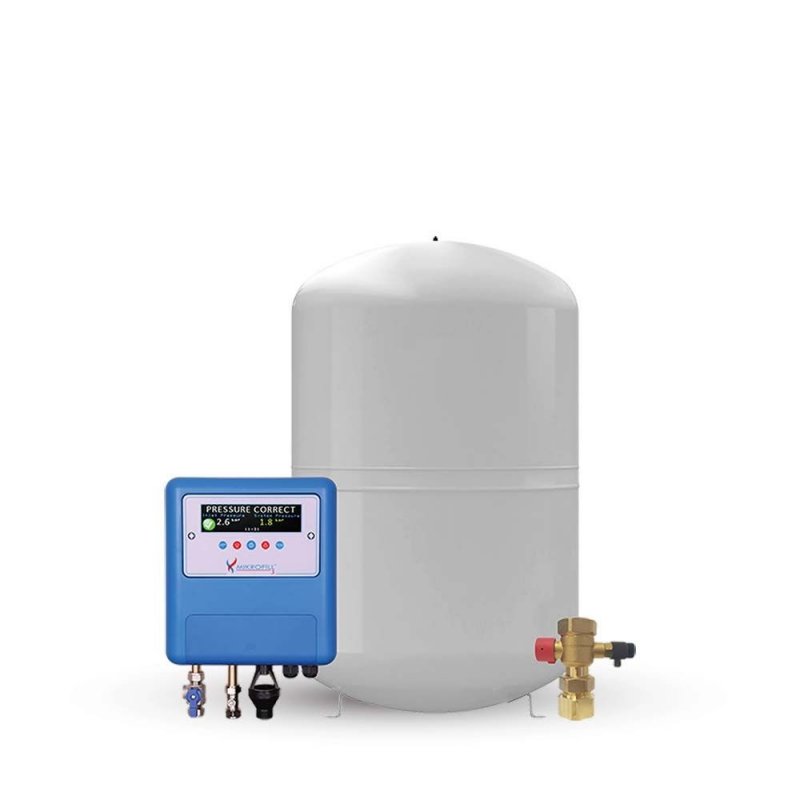

Mikrofill 100 Pressurisation Set with 100 Litre vessel and Service Valve


Product Ref: 100100

Free Delivery WRAS Approved Parts
  • Volume: 100ltr
  • Estimated Lead time: 7 - 10 Working Days

    Home Delivery

    UK mainland delivery from FREE ex VAT

    check delivery cost


    Technical Information

    Mikrofill Technical Information

     Approvals / Conformity Certification  WRAS Approved Product (1212069) UKCA, CE
     Warranty  2 Years
     Cold Water Inlet  15 mm Compression
     System Outlet 15 mm Compression
     Drain (Via Tundish) 3/4'' BSP
     Maximum Inlet Pressure  5 Bar
     Maximum Cold Fill Pressure 4.7 Bar
     Nominal Flow Rate 14 l/ min
     Height x Width x Depth (mm) 270 x 250 x 112
     Dry Weight (kg) 5


    Mikropro Vessel Technical Information

     Capacity (L)  100
     Diameter (mm) 512
     Height (mm) 669
     Inlet 1''
     Inlet height From floor (mm) 172
     Weight (kg) 15.8
     Operating Pressure - Max 6 Bar
     Operating Temperature - Max 70 °C


    Downloadable Documents

    Product Description

    Mikrofill 100 Includes Mikrofill 3 PU Unit- 1x 100 Litre 6 Bar Vessels-Service Valve & Factory Pre-Commissioning

    Mikrofill is a system that efficiently fills a water system to an optimal pressure level to achieve the best flow. The Mikrofill is designed to be connected directly to a building's incoming mains/boosted water supply and fill a heating or chilled water system without the use of a pump.

    Key Features

    • 97% more Energy efficient than some pump type units
    • Integral fluid risk category 4 backflow prevention - No RPZ valve required
    • Fills any LPHW/CHW system from empty - Connects directly to the mains/boosted water supply
    • Wall mounted unit only 270 mm high x 250 mm wide - Compact enough to fit in the smallest of plant rooms
    • Consumes 10 watts on standby and 30 watts fully operational per hour - 97% more energy efficient than some pump type units
    • Fill volume indicator - Aids water treatment calculation
    • Large colour screen display - Clear and concise instruction
    • Pre - commissioned packages available - No on-site commissioning required when sold as a package
    • WRAS Approved Product



    • No RPZ valve required
    • Automatically monitors system and controls system pressure
    • Connects directly to the mains water supply
    • Provides early warning of system leakage and aids water treatment calculation
    • Flexible Installation
    • Clear status indication and intuitive set up
    • No on-site commissioning required
