Platin Direct Complete Package 5000L

5,000 litre GRAF Platin Direct Rainwater Harvesting System

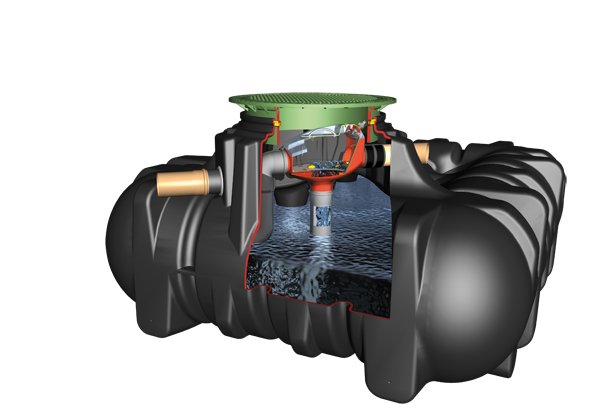

The GRAF Platin tanks are shallow-dig plastic rain water storage tanks designed for ultra-low installation. The GRAF Direct Package includes a complete system for storing and using rainwater for on-demand supply to WCs, washing machines and external taps, potentially saving up to 50% of your mains water usage.

Customer Notice: The processed water may be used to water the garden, flush toilets, wash clothes and as conventional cleaning water. It is Not suitable for consumption or personal hygiene

• Simple & quick to install
• On Demand Rainwater Supply - submersible pump supplies harvested to toilets, washing machine & external tap.
• Guaranteed Water Supply – tank topped up with mains supply when water level in the tank is low.
• Mains-on-Tap - quiet and conveniently sized unit that can fit in a cupboard for low visual impact.
• Innovative Float Sensor - ensures underground tank is kept supplied with mains water, but only the amount needed to supply demand whilst leaving as much volume as possible to collect rainwater when available.

Specifications:

Capacity: 5,000 litres
Length: 2890mm
Width: 2300mm
Height: 1015mm
Inner Ø dome shaft: 650mm
Tank Weight: 240kg
Dome Shaft Weight: 9kg (pedestrian loading)/55kg (vehicle loading)
Warranty: 15 Years

Please Note: All dimensions are approximate (the manufacturer reserve a tolerance of +/- 3%) and the useful volume of the tanks may be up to 10% lower than the tank capacity, according to the connecting option. All images shown are used for illustration purposes only and may differ from the actual product supplied
