600 Litre Type AB Air Gap GRP Break Tank - Two Piece Insulated, Cat 5

600 Litre Type AB Air Gap GRP Break Tank - Two Piece Insulated, Cat 5

Product Code: PW601-2-AB

*Please note the Baseboard will be moulded into the internal base of the tank

Steel support stand is for raising the tank, allowing equipment to be positioned underneath

It is the customers responsibility to offload, a HIAB is available for an additional fee

Exc. Vat £765.00 £918.00 Inc. Vat
- +
Exc. Vat £765.00 £918.00 Inc. Vat

Shipping from £75.00 (£90.00 inc Vat)

(Certain postcodes in Wales, Scotland, Highlands and Islands may cost more,
CLICK HERE for details)

Product Details

600 Litre Type AB Air Gap GRP Break Water Tank - Two Piece Insulated, Cat 5 Full WRAS approval.

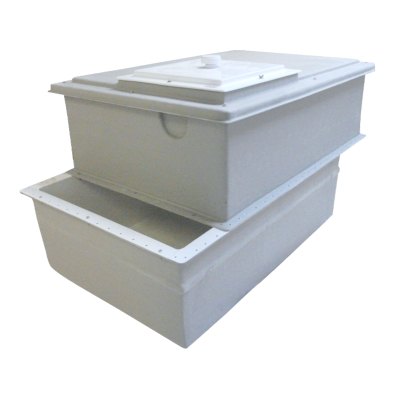

Product Image is an example only showing a 2 piece tank with AB air gap.

Tank comes with float valve housing to suit drop arm equilibrium float valves up to 35mm. A float valve housing that is suitable for equilibrium drop arm float valves up to 54mm is available as an optional extra. Manufactured to meet BS7491 Parts 1 and 2, using the highest quality GRP materials, ensuring a long service life with minimal maintenance requirements. Grey colour as standard (other RAL or BS colours are available at additional cost). Only materials of the highest quality are used along with a highly efficient manufacturing processes. This combination ensures that these tanks are of the highest quality available.

All internal surfaces, including the lid, have an Isophthalic white gelcoat layer which provides a clinical smooth surface which will not support the growth of microbiological organisms. This gelcoat layer is reinforced by the main GRP laminate which provides the main structure of the tank body. The materials used are of the highest quality and applied with exacting production standards to assist in prevention of osmotic blistering. Further reinforcement is provided by square section steel tubing with fully welded corner joints. Steel reinforcement ensures that the softening and general deterioration encountered with timber supports is avoided, thus providing full structural reinforcement for the life of the tank.

After the CFC free PU foam insulation and the steel reinforcement are fitted, the GRP outer skin is then applied. This ensures that both insulation and reinforcement are fully encapsulated and protected from external conditions. The whole tank is then coated with a tack free grey polyester gelcoat layer. This ensures that the tanks are suitable for all locations and weather conditions and can be located outdoors as standard. Where access is a limiting factor and our one piece GRP tanks are unsuitable a two piece tank could do the trick. These tanks are manufactured in two or more horizontally split sections which are then assembled once the restriction has passed. In a nutshell – a one piece tank in two or more bolt together sections.

All of the components including sealant and fixings for the joint flange are supplied with the tank. The assembly of this range of products could not be easier and should not prove difficult for any competent mechanical services engineer. These two piece tanks allow utilization of the more cost effective one-piece type tank format, where a considerably more expensive sectional tank would traditionally have been supplied.

Nominal capacity shown
Nominal capacity = full capacity to top of tank
Actual capacity = float level

Please note: valves and fittings are supplied loose (items can be fitted to the tank for an additional fee).

Tank is supplied as standard with two built-in fixing pads, positioned at opposite ends of the tank.


Product Attachments

View FilePW601-2-AB 35mm float housing    Size: (160.81 KB)

Tank Drawing

View FilePW601-2-AB 50mm float housing    Size: (159.73 KB)

Tank Drawing

View FileGRP Rectangular Template    Size: (69.33 KB)

Drawing for marking your tank options

View FileGRP Connection Fitting Instructions    Size: (54.18 KB)

On-site Connection Fitting Instructions for One Piece, Two Piece & Sectional Tanks

Shipping Estimate

Estimate Shipping

To use the shipping estimator please select the * Required Fields (if applicable) shown on product above, then enter the quantity required (below) to obtain a carriage estimate.


Please call us for delivery to postcodes in Wales, Scotland, Highlands and Islands.


Items you may also be interested in


Product Code: PW601-2-AB
Height (mm): 1510
Height Internal (mm): 1200
Length (mm): 1180
Length Internal (mm): 1000
Width (mm): 680
Width Internal (mm): 500
Capacity (Litres): 600
Capacity (Gallons): 130
Weight (Kg): 50.00
Shape: Rectangle
Material: GRP
WRAS Approved: Yes
Potable: Potable
Tank Use: Above Ground
SKU: PW601-2-AB.

Capacity: 600 Litres
Weight: 50kg
Please note: Tank sizes quoted are subject to a +/- 3% variation
