300 Litre Grey Water Pump Station, 6m lift

300 Litre Grey Water Pump Station, 6m lift

Product Ref: AquaTank300S

available Available (allow 2 days for delivery)

from £450.00 ex VAT
(£540.00 inc VAT)

updown

Product Description

Aqua Tank 300S - Single Pump - Grey Water, Surface and Ground Water Pump Station - 300 Litre


The Aqua Tank package pump station is designed to collect ground water via a perimeter channel or 110mm pipe and/or clear opening to the top of the chamber. The Aqua Tank comes with a single pump arrangement, the station can be supplied with an optional battery back-up system which would ensure the pump would work in a power outage.



The Aqua Tank can also collect grey water from showers and wash-hand basins but is not suitable for foul water from a W.C. (please see our pump station category). The Aqua Tank is delivered to site as a complete package, including all internal pipe work and a drainage pump. We would highly recommend that a high level alarm is fitted, which is available from us as an optional extra.



The Aqua Tank has been designed to ensure an easy problem free installation and is manufactured in high grade MDPE.  The Aqua Tank comes in three different sizes 635,1000 and 1500mm deep. Suitable for Removing Grey Water From:  Final Effluent from Sewage Treatment Plants, Drainage of Cellars & Basements, Sinks, Showers, Kitchens & Dishwashers



A packaged pump station is used when gravity drainage on site cannot be achieved. The Aqua Tank is suited for clean, dirty or slightly polluted water. This unit has been designed to pump water from a septic tank or treatment plant. Our packaged pump station systems are designed to have a 24 hour storage capacity and are manufactured to BSEN752-6 standards.



The units are available from stock. All you need is supplied so you just need to supply the pipework to and from the station, plus any fittings.  The Aqua Tank Pumping Station comes with a submersible pump with 10mm solid handling for peace of mind

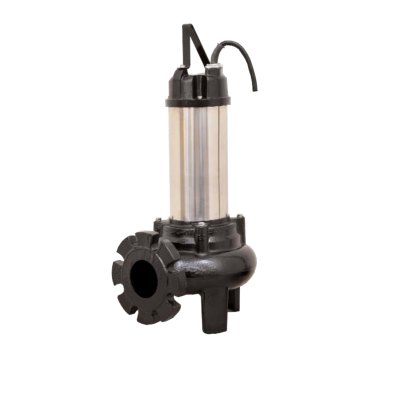

Pump:

Polypropylene Plastic

10mm (1 ¼") solids handling capacity

Coolant filled motor.

Mechanical seal.

10 Meter cable.

Max 6 Meter lift.

Max flow 5 L/sec

Float switch as standard.



Tank:

Polyethylene tank.

190L, 300L and 450L capacity.

Screw down lid (Pedestrian rated)

1 x 110mm/160mm inlet seal to allow inlet to be drilled on site.

40mm cable duct.

1 ¼"' internal pipe work

1 ¼" non-return valve

1 ¼" quick release coupling

1 ¼" cable duct

Product Specification

  • Product Code: DPT
