Horizontal Sewage Pump Station, Twin Pump, 14,000 litre tank

Pump Station Commissioning

Full system inspection

Levels inspection

Manway check for obstruction

Mount control panel (if not in place)

Check correct load to panel

Check correct cable size

Check correct power supply

Set the overloads

Lower pumps via guiderail onto stools using an A-frame if required

Pull pump cables through ducting

Pull float cables through ducting

Set floats to correct operating position

Wire cables into control panel

Fill system with water

Full test of pump station

Sign-off and certification

Warranty and documentation provided

Maxi Horizontal Specification Sheet

Horizontal Maxi Data Sheet

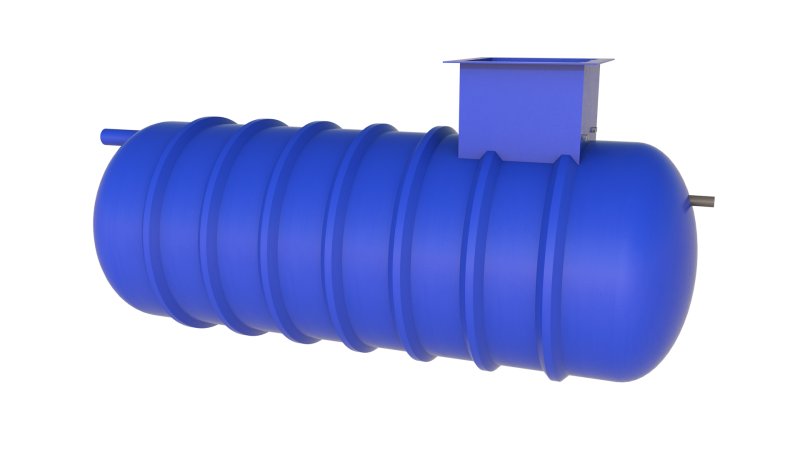

Horizontal Sewage Pumping Station 14,000 Litres

The Horizontal Sewage pumping stations are a range of packaged pump stations which are designed to collect foul or surface water from multiple properties or large commercial buildings.

This made to order systems, can be manufactured to suit site specific requirements, such as taller turrets to pick up deeper incoming drains, and also precise measurements for the inlet depths can be pre-cut if required. If this is required, please contact us for more details

All you need is supplied to you within the package, including all internal pipework, 2 sewage pumps and twin control panel and float switches. Our range of pumping stations is of a superior design and quality, to meet with BSEN75.6 requirements.

Delivery

All our Sewage Pumping Stations are for delivery by customer offload. This entails the customer to acquire the right manpower and/or machinery to help unload the tank/s from the delivery vehicle.

If you require assistance with offloading, we may be able to offer a tail lift (lowers the tank to the ground) or HIAB (lorry with a mounted crane to winch the tank off the delivery vehicle). Please contact us if this is required for delivery.

• Product Code: DPT
• Customer Offloading: Customer Offloading
• Delivery: Free Delivery
• Material: MDPE
• Tank Use: Sewage
• Twin or Single: Twin
