Stuart Turner Mainsboost MB 200SH-1-22


Product Ref: 44747

Customer Offloading Free Delivery Yes

Home Delivery

UK mainland delivery from FREE ex VAT

check delivery cost


Product Description

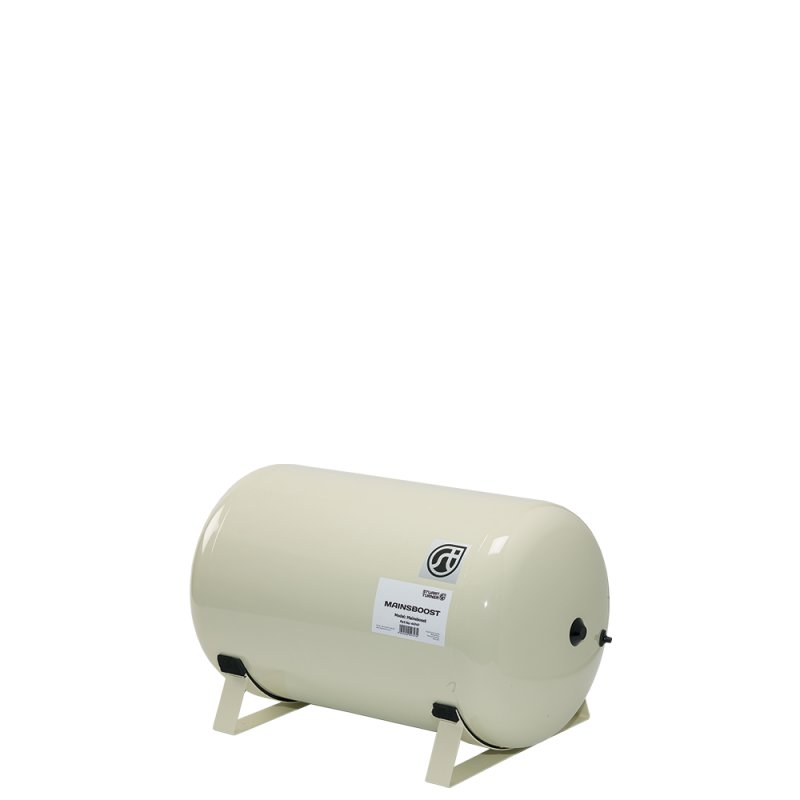

Mainsboost MB 200SH-1-22 - Mains Water Boosting System Horizontal Vessel

Mainsboost products are a flexible solution assisting with unvented systems (mains pressure) where the incoming mains pressure to the property is low or intermittent. Ideally suited for boosting cold water mains supply to residential, commercial and industrial properties.

The MB 200SH-1-22 is designed where height restrictions prevent a vertical vessel being fitted. For unvented cylinders and combination boilers where the mains pressure is greater than 2.0 bar, but the water flow is inadequate for the requirements.

Installed directly onto the incoming water supply and under mains pressure, the vessel fills with water, creating a state of pressure equilibrium within the chamber (as it's surrounded by positive pre-charged air pressure sealed within the vessel, balancing them out). The Mainsboost system now has a volume of pressurised water ready for distribution throughout the property.

If greater demand is required, Mainsboost can be supplied with multiple vessel options.


Key Features

  • Up to 80 litres/minute per vessel
  • 1 x 200 litre pressure vessel
  • Minimal maintenance
  • Silent operation
  • WRAS approved product
  • Consumes no electricity
  • Robust construction
  • Long life butyl diaphragm
  • Integral strainer
  • Comprehensive ULK installation kit included
  • Patent protected
  • 5-year warranty


  • One, two or three vessel systems
  • Mainsboost Charger pump for applications where the incoming mains water pressure is less than 2 bar (static pressure)
  • Thermal Insulating jackets



MB 200SH-1-22 Specifications

 No. of Vessels One
 Vessel Usable Capacity (Litres) 110
 Dimensions (H x W x D) (mm) 558 x 540 x 026
 Empty Weight (kg) inc. fittings 39
 Filled Weight (kg) 149
 Max Weight (kg) 239
 ULK Kit (mm) 22
 WRAS Approved Yes
 Mounting Floor
 Min / Max Operating Temperature Min 4 °C / Max 35 °C
 Warranty 5 years
