4000 Litre GRP Pump Enclosure with built in Fire Suppression Water Tank, CAT 5 AB air gap
Product Ref: CU3.4000AB.FT
Custom Delivery Required
Delivery price on application.
Product Description

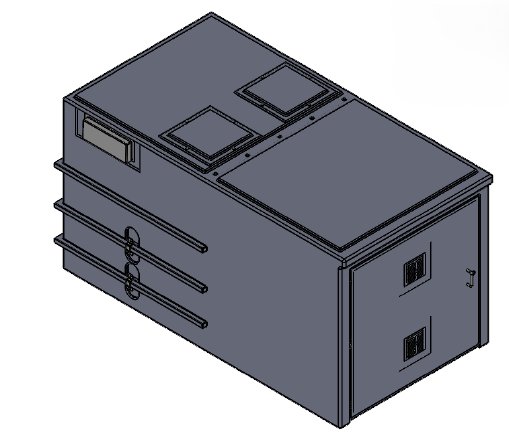

GRP Above Ground Fire Combination Unit 4000 Litre, CAT 5 AB air gap
The unit is designed as a single piece item with an internal dividing wall at full height. One internal section being the wet compartment for the stored water, which is accessed via a lid mounted lockable man way. Beyond the internal dividing wall is the dry side where the booster set is to be positioned. The internal dividing wall has the inlet and outlet connection within it, the overflow, warning pipe and screened spill over weir terminate through the wet side wall to the outside and do not therefore normally require any additional pipework. The dry side is accessed by a large 1600 x 1600mm hinged and lockable door, which is fitted with louvred vents to ensure adequate ventilation.
If chosen with the Foundation Skid, the whole unit is mounted and fixed to a fully welded galvanised steel skid, which allows offloading and movement on site by fork lift struck. The principle is to provide the unit to the booster set manufacturer, where the booster and associated electrical equipment can be fitted. The completed unit can then be delivered to site where once positioned it requires the simple connection of the mains pipework, outlet pipework to the services, and electrical supply, making it a "plug and play' unit requiring minimal onsite installation.
All units are fitted with the following:
- 1 No 50mm screened lid vent
- 1 No single 1600 x 1600mm door to the end face of the pump compartment
- 1 No lockable access manway fitted to the roof of the wet compartment.
- 1 No EPDM mat to the floor of the pump compartment
- A fully encapsulated ply base.
*Units do not include electrical components, wiring, pump sets, control equipment, connections of any kind or internal pipework.
**Units not fitted with a galvanised steel skid are suitable for positioning onto a structural pad only which should be flat, level and continuous and be +/- 2mm over the surface area.
***Units not fitted with a galvanised steel skid have an external height 200mm less than stated in the overall dimensions column of this document
**Cat 5 (AB and AG) supplied loose
Nominal Capacity | 5500 Litres |
Actual Capacity Approx. | 4000 Litres |
Overall Dimensions | 3600 x 2000 x 2250mm high |
Wet Compartment | 1700 x 1800 x 1800mm |
Pump Compartment | 1700 x 1800 x 1800mm |
AG Airgap
IP22-AG-SL
- 42mm screened lid vent
- 22mm equilibrium float valve
- 35mm screened overflow
- 22mm screened warning pipe
IP28-AG-SL
- 42mm screened lid vent
- 28mm equilibrium float valve
- 42mm screened overflow
- 22mm screened warning pipe
IP35-AG-SL
- 42mm screened lid vent
- 35mm equilibrium float valve
- 50mm screened overflow
- 22mm screened warning pipe
IP42-AG-SL
- 42mm screened lid vent
- 42mm equilibrium float valve
- 67mm screened overflow
- 22mm screened warning pipe
IP50-AG-SL
- 50mm screened lid vent
- 50mm equilibrium float valve
- 80mm screened overflow
- 22mm screened warning pipe
AB Airgap
IP22-AB-SL
- 22mm screened lid vent
- 22mm equilibrium float valve c/w drop arm and float
- 35mm screened overflow
- 22mm screened warning pipe
IP28-AB-SL
- 22mm screened lid vent
- 28mm equilibrium float valve c/w drop arm and float
- 42mm screened overflow
- 22mm screened warning pipe
IP35-AB-SL
- 22mm screened lid vent
- 35mm equilibrium float valve c/w drop arm and float
- 50mm screened overflow
- 22mm screened warning pipe
IP42-AB-SL
- 22mm screened lid vent
- 42mm equilibrium float valve c/w drop arm and float
- 67mm screened overflow
- 22mm screened warning pipe
IP50-AB-SL
- 22mm screened lid vent
- 50mm equilibrium float valve c/w drop arm and float
- 80mm screened overflow
- 22mm screened warning pipe
Delivery
All our GRP tanks are for delivery by customer offload. This entails the customer to acquire the right manpower and/or machinery to help unload the tank/s from the delivery vehicle.
If you require assistance with offloading, we may be able to offer a tail lift (lowers the tank to the ground) or HIAB (lorry with a mounted crane to winch the tank off the delivery vehicle). Please contact us if this is required for delivery.
**Pictures are for illustration purposes only
Product Details
- Product Code: PW
- Customer Offloading: Customer Offloading
- Material: GRP
- Potable: Potable
- Stock tank: Made to Order, Non Returnable Product
- WRAS: Yes
- WRAS Approved: Yes
