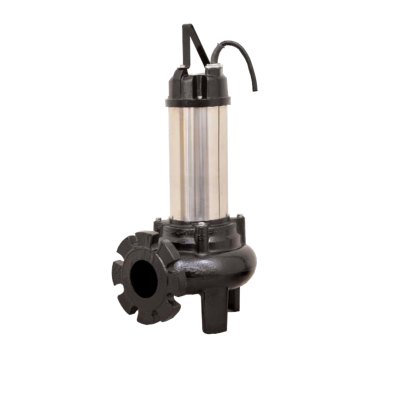

Agrimax Silage Cutter Pump

Agrimax Data Sheet

Agrimax Silage Pump

The 230/1/50 (Single Phase) or 400/3/50 Agrimax (3-Phase) submersible cutter pump is designed for heavy duty agricultural waste water applications, with a pumped media free passage of 25 mm at temperatures up to 40 °C. It features a stainless steel cutter ring and scroll type cutter impeller mounted on a reduced length shaft.

Single phase models are supplied with a float switch as standard (If you require a manual version, please email us, and we should be able to source one for you) and an IP55 control box housing start and run capacitors, thermal overload and reset.

Both the single and 3 phase model come supplied with the stand for easy installation.

Further Technical Information

• EN-GJL-250 cast iron construction
• Mechanical seal - silicon carbide
• Lip seal and O-rings in NBR
• Oil chamber
• Continuous duty motors, Class H insulation suitable for >15 starts per hour
• Bearings are over dimensioned, life lubricated, maintenance free
• 10 metres Neoprene HO7RN-F cable as standard.

We may also be able to provide these pre-installed in a tank should you have the need for it, please email us with your requirement, and we will see what we can do for you.
