Aquamaxx 800 Litre Cold Water Twin Booster Pump Set



Product Ref: AQM/40/10T/800

Customer Offloading Free Delivery MDPE Upright Twin WRAS Approved Parts
  • Volume: 800ltr
  • Dimensions: H:1370mm
  • Diameter: 1000mm
  • Estimated Lead time: 3-5 working days

    Home Delivery

    UK mainland delivery from FREE ex VAT

    check delivery cost

    Choose option:

    updown

    What is involved in the Commissioning

    Standard commissioning process

    • Mount panel into the kiosk or suitable housing location supplied / identified by others.
    • Drop draw cords down the 110mm cable duct already installed by others.
    • Lower the pumps down the guide rails onto the pedestals and ensure correct position.
    • Pull through the float and pump cables, if a cable extension is needed, this is extended within the chamber via a junction box and pulled through with a multicore cable.
    • Take a electricity supply from a type C32 rotary isolator at the location of the panel.
    • Connect the power to the control panel along with the 2 pump cables and the 4 control float cables.
    • Set floats are the required heights to correspond with the inlet level.
    • Fill the pump station if not already full.
    • Power up the control panel and turn each pump into manual using the dials to amp test each pump and set the Lmax overload setting.
    • Set the dials to auto and continue to fill to test standard operation
    • Remove air locks if necessary
    • Check duty assist and high level alarm function
    • Leave the system in full working order

    Video

    Product Description

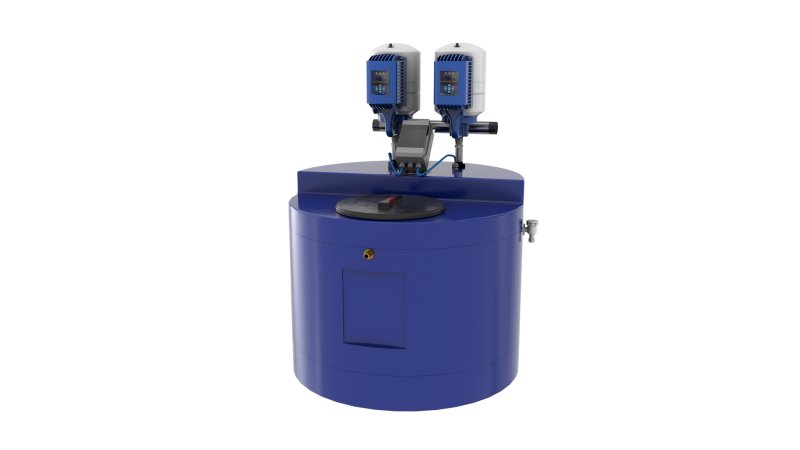

    800 Litre Cold Water Tank with Twin Pump Booster set

    The Aquamaxx has been specifically designed for smaller properties with low water pressure and flow where space is at a premium. Areas such as apartments, cottages and town houses would benefit the most from a compact system.
    The Aquamaxx Compact fits into the space of a standard kitchen unit as they are similar in size to a washing machine, so can be hidden away behind a cupboard door. The electronic controller will automatically start and stop the pump when a drop in pressure is sensed, i.e. a tap or outlet is opened and closed.



    Features

    • Non-corrosive holding tank (WRAS approved material)
    • Pre-fitted WRAS approved fill valve
    • WRAS approved submersible pump (s).
    • Integral overflow weir
    • Minimal installation requirement
    • Digital display flow controller
    • Dry run protection with auto restart (time delay)
    • WRAS Approved inverter and vessel





     Tank Capacity  Pump Arrangement  Diameter (mm)  Height (mm)  Inlet  Outlet (Single)  Outlet (Twin)   Overflow
    800 Litres Twin 1000 1370 1/2'' BSP N/A 2 x 1 1/2'' 22 mm



    Pump

    All Aquamaxx booster sets use the IDROGO submersible pump. Comprising a stainless steel outer casing and glass fibre reinforced PPE impellers, this pump is reliable and corrosion-resistant.

    Features of the pump

    • PPE + PS impeller with glass fibres
    • Stainless steel 431 Shaft (EN 1.4057)
    • WRAS Approved
    • An AISI 304 outer casing
    • Carbon/Ceramic/silicon/NBR mechanical seal
    • Pre-installed into every Aquamaxx tank
     Model Number  Mid-Curve flow  Mid-Curve Pressure  kW Rating  Running Current (amp)  Supply Voltage  Inlet  Outlet  Overflow Size  Dry weight
    FV40/10T 80 l/min 4.5 bar 2 x 0.75 2 x 3.8 1 ph 230v 50 hz 28 mm 1 1/4'' 40 mm 94 kg
    FV40/15T 80 l/min 6.5 bar 2 x 1.1 2 x 5.2 1 ph 230v 50 hz 28 mm 1 1/4'' 40 mm 96 kg
    FV80/15T 120 l/min 4.5 bar 2 x 1.1 2 x 5.4 1 ph 230v 50 hz 28 mm 1 1/4'' 40 mm 98 kg
    FV80/20T 120 l/min 5.8 bar 2 x1.5 2 x 6.1 1 ph 230v 50 hz 28 mm 1 1/4'' 40 mm 100 kg



    aquamaxx-flow-curve



    Delivery

    All our Aquamaxx Booster pumps are for delivery by customer offload. This entails the customer to acquire the right manpower and/or machinery to help unload the tank/s from the delivery vehicle.

    If you require any specific requirements regarding delivery, please call us before order is placed, where we will try and accommodate this facility for you.

    Product Details

    • Product Code: DPT
    • Colour: White
    • Customer Offloading: Customer Offloading
    • Delivery: Free Delivery
    • Diameter: 1000mm
    • Material: MDPE
    • Shape: Upright
    • Twin or Single: Twin
    • WRAS: WRAS Approved Parts

    Delivery

    Our shipping costs cover most of the UK - however, parts of England, Scottish Highlands and Islands including areas north of the Glasgow / Edinburgh border, Isle of Wight, Channel Islands, Isle of Man, Anglesey, Western Isles, Shetland Islands, Orkney Islands, Isles of Scilly, Northern Ireland and the Republic of Ireland may cost more.

    Please call before ordering if the delivery postcode is listed below. There may be additional shipping costs. AB, BT, CA, CT, DD, DG, EH, FK, G, GY, IM, IV, JE, KA, KW, KY, LD, LL, ML, PA, PH, PO 30-41 (Isle of Wight), SA, SY, TD, TN, TR, ZE Southern Ireland

    Our lead times should only be used as a guide and are subject to change.

    Offloading

    Unless a hi-ab delivery has been booked at additional cost, it is the customer's responsibility to offload with suitable equipment on the day of delivery and a failed delivery may result in additional charges.

    We recommend installers and/or plant hire & materials to install such as excavators, aggregates etc are not booked until you are in receipt of the goods. Tanks Direct cannot be held responsible for costs incurred due to unforeseen delays, please see our terms for more details.

    HIAB

    HIAB delivery will be required if you need the tank offloaded from the delivery vehicle. The driver will unload the tank from the vehicle to ground level, however this service is not to place the tank in situ, this will need to be arranged separately.

    If you have any questions regarding your delivery, please contact the Sales Team on 01643 703358.

    Returns Information

    Customers may return items within 14 calendar days (as per our Terms & Conditions) - refer to section 7. **

    Please note - Certain items may not be returnable, for example those made to order or for sanitary reasons. Please check the product page for more information.

    All Items must be returned unused, refunds cannot be issued for used or previously installed items.

    Please be aware that returning a tank can be complicated and expensive, so please check that you are ordering the correct item (we suggest checking the dimensions very carefully).

    If you wish to return goods, please complete the form on this page to provide further information.

    Once your request is approved, a valid Returns Authorisation Number (RAN) will be issued to initiate the returns process along with information on how & where to return your order along with any costs involved.

    Please DO NOT return any goods without this authorisation. Goods cannot be accepted without this.

    Returns are not accepted at our Minehead Office, please wait until we contact you before returning any goods.
