57 Litre Wheel Arch Tank

Wydale 57 Litre Wheel Arch Tank

57 Litre Wheel Arch Tank

Product Ref: T57WBK4I

MDPE Potable Rectangle Above Ground
  • Volume: 57ltr
  • Weight: 6.500kg
  • Dimensions: L:750mm W:346mm H:500mm
  • Lid Size: 150
  • Estimated Lead time: 3-5 Working Days for Natural, 10 - 14 Working days for Coloured Tanks

    Home Delivery

    UK mainland delivery from £33.00 ex VAT

    check delivery cost

    from £123.90 ex VAT
    (£148.68 inc VAT)
    Downloadable documents

    pdf57 Wheel Arch Tank

    Product Description

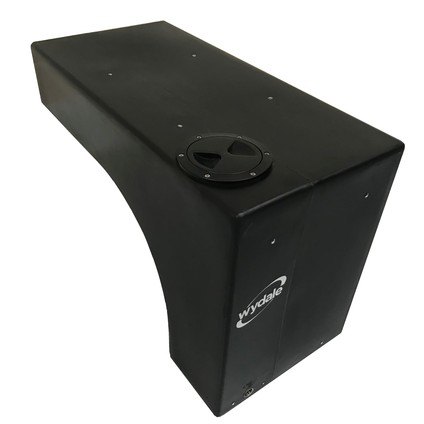

    57 Litre wheel arch tank designed to fit in vans and pickups.

    57 litre capacity has 11 x M8 inserts moulded into the tank for easy mounting. There are also a range of kits available to ensure the tank is quick and easy to install including a plumbing kit, fitting kit and a submersible pump kit these need to be purchased seperatly.


    Submersible Pump Kit:

    This kit can be used to allow a submersible pump to be connected through the lid.


    1 x ½” BSP 90° bulkhead hose tail 11-13mm

    1 x ½” BSP back nut

    1 x ½” BSP gasket

    1 x cable gland

    1 x 10 metre roll PTFE tape


    Plumbing Kit:

    This kit has all the fittings required for the outlet, inlet and vent hoses.


    1 x ½” BSP x 13mm hose tail

    2 x ½” BSP 90° hose tail

    3 x ½” BSP gasket

    3 x ½” BSP back nut

    1 x 10 metre roll PTFE tape


    57 Litre Fitting Kit:

    6 x M8 x 12mm socket button head stainless steel

    6 x M8 x 25mm washer stainless steel

    2 x 50mm x 55mm x 30mm angle bracket

    4 x 150mm x 90mm x 60mm angle bracket



    **IMPORTANT** Due to the manufacturing process, we cannot guarantee products are free from debris, notably but not limited to dust or swarf, please check and rinse out if required.


    Our shipping costs cover most of the UK - however, parts of England, Scottish Highlands and Islands including areas north of the Glasgow / Edinburgh border, Isle of Wight, Channel Islands, Isle of Man, Anglesey, Western Isles, Shetland Islands, Orkney Islands, Isles of Scilly, Northern Ireland and the Republic of Ireland may cost more.

    Please call before ordering if the delivery postcode is listed below. There may be additional shipping costs. AB, BT, CA, CT, DD, DG, EH, FK,G, GY, IM, IV, JE, KA, KW, KY, LD, LL, ML, PA, PH, PO 30-41 (Isle of Wight), SA, SY, TD, TN, TR, ZE Southern Ireland

    Our lead times should only be used as a guide and are subject to change.


    Unless a hi-ab delivery has been booked at additional cost, it is the customer's responsibility to offload with suitable equipment on the day of delivery and a failed delivery may result in additional charges.

    We recommend installers and/or plant hire & materials for install such as excavators, aggregates etc are not booked until you are in receipt of the goods. Tanks Direct cannot be held responsible for costs incurred due to unforeseen delays, please see our terms for more details.

    If you have any questions regarding your delivery please contact the Sales Team on 01643 703358.

    Returns Information

    Customers may return items within 14 calendar days (as per our Terms & Conditions) - refer to 4.6 & 4.7. **

    Please be aware that returning a tank can be complicated and expensive so please check that you are ordering the correct item (we suggest checking the dimensions very carefully).

    If you wish to return goods, please complete the form on this page to provide further information.

    Once your request is approved, a valid Returns Authorisation Number (RAN) will be issued to initiate the returns process along with information on how & where to return your order along with any costs involved.

    Please DO NOT return any goods without this authorisation. Goods cannot be accepted without this.

    Returns are not accepted at our Minehead Office, please wait until we contact you before returning any goods.

    Please click here to request a return

    Product Specification

    • Product Code: WD
    • Colour: Black
    • Lid Size: 150
    • Material: MDPE
    • Potable: Potable
    • Shape: Rectangle
    • Tank Use: Above Ground
