Klargester Hillmaster PX4 Malvern 750L Twin Sewage Pumping Station

To size your pump stations they key factors to take into consideration are below

• Application: domestic, residential or commercial.
• Material application: sewage, effluent or surface water.
• Inlet depth (below ground level).
• Pumping distance and lift.
• Electrical supply.

If you require assistance with sizing your Pump station, please give our sales team a ring on 01643 703358.

Klargester Hillmaster Brochure

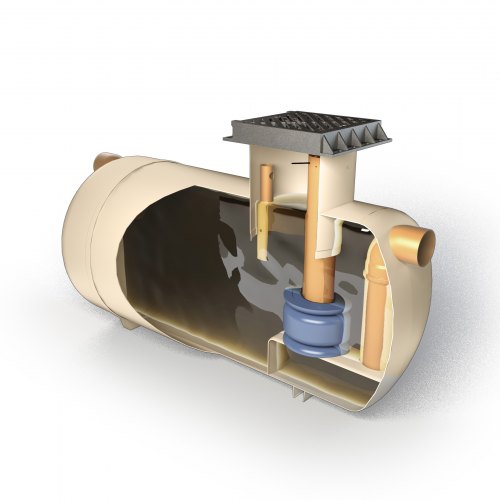

Klargester Hillmaster Malvern 750L Twin Sewage Pumping Station

The Klargester Hillmaster Malvern Range of pump stations are available as a 900mm diameter chamber with a twin pump.

Klargester Polyethylene pumping solutions ideal for small domestic properties from extensions to multiple units up to 10 residents, to comply with building regulations 24hr storage.

These solutions can be used in many other applications where sewage or surface water drainage cannot be connected via gravity.

Our dedicated team is on hand to advise.

Product Benefits

• Prefabricated ready for installation with no man entry required
• High level alarm
• Internal lifting chains and guide rails (as specified)
• Wide range of pump options
• Various invert depths and positions
• Optional kiosks with warning beacons and optional telemetry systems
• Single Pump Options Available
• 2 year warranty* (*subject to be commissioned by Kingspan Service and/or Accredited Service Partner)

• Product Code: KLA
• Customer Offloading: Customer Offloading
• Delivery: Free Delivery
• Diameter: 900mm
• Material: MDPE
• MISC: High Level Alarm Included
• Shape: Round
• Tank Use: Below Ground, Sewage
• Twin or Single: Single, Twin
• Warranty: Klargester 2 years

Low Cost Commissioning

Benefits:

• Reassurance that your system's mechanical and electrical components are in good working order
• A warranty period that only starts when your water system is commissioned, not when it leaves the factory (terms and conditions apply)
• Trouble-free operation of your system from the start

Find out more about what's included in the Commissioning of your Klargester pump station and arrange Commissioning, read Kingspan's dedicated guide to Commissioning today.

Smart Commissioning (Twin Pump Option Only)

Standard commissioning as scope of works, inc supplied and fitted (at point of commissioning) Kingspan Smartserv Pro GSM telemetry alarm for complete peace of mind. Smartserv alerts both Kingspan and designated contacts.

Includes 3 years Kingspan monitoring free of charge. (T&Cs apply).

Standard Commissioning

The checks below will be carried out by a Kingspan Service Engineer and will only be checked if the unit has been installed in line with the provided installation guidelines.

• Unit is installed flat and level with safe working area around the perimeter


• All incoming and outgoing pipework has been connected


• The control panel has been mounted


• Permanent electrical supply has been fitted to the panel (extension leads or generator supplies will not be acceptable)


• The following will then be carried out by an Authorised Service Engineer:


• Check the system is installed to manufacturer's instruction


• Fit floats in tank and set the levels


• Pull float and pump cables through the ducts using drawstring provided


• Connect pump and float cables to the control panel using appropriate glands (the panel must be within 2 m of the chamber or select “enhanced commissioning”)


• Check float cable operation and terminate (stop, start, standby, alarm)


• Check pump rotation


• Run the pumps via the float switches to ensure correct operation and discharge


• Test high level alarm and beacon (if applicable)


• Leave on Auto for future use


• Please note, Kingspan Commissioning covers UK mainland and certain postcode areas only. Please speak to our Team for expert advice on Commissioning.


•

Service and maintenance

Your pump station should be serviced bi-annually to prevent blockages or obstructions in the inlet or outlet pipes from occurring. Any service and maintenance works need to be carried out by a properly trained professional, with appropriate experience, especially with mechanical and electrical parts. For more information on service and maintenance plans, please give our team a call on 01643 703358.
