Klargester Full Retention Separator - 335M² drainage area

Klargester Full Retention Separator - NSFP006 - 335M² drainage area

Product Ref: NSFP006

Customer Offloading Free Delivery HIAB Available Below Ground
  • Weight: 180.000kg
  • Dimensions: L:1700mm
  • Diameter: 1350mm
  • Estimated Lead time: 3-5 Working days

    Home Delivery

    UK mainland delivery from FREE ex VAT

    check delivery cost

    from £1,137.00 ex VAT
    (£1,364.40 inc VAT)
    Product Description

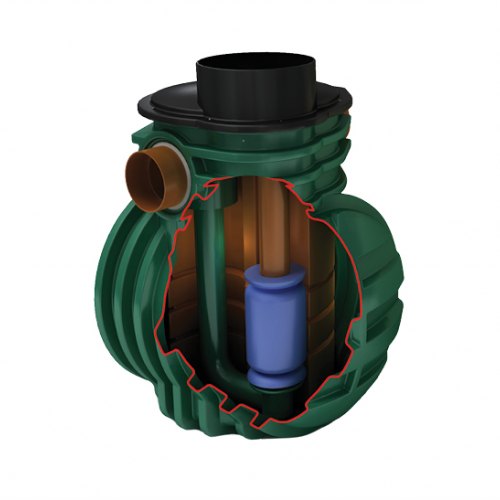

    Klargester NSFP006 Full Retention Separator for 335m2 drainage area

    The Klargester range of full retention separators are suitable for use in car parks, roadways, fuel distribution depots, vehicle workshops and forecourts.

    Full retention separators treat the full flow that can be delivered by the drainage system. This is normally equivalent to the flow generated by the rainfall intensity of 65mm/hr. On larger sites, some short term flooding may be acceptable means of limiting the flow rate and hence the size of full retention systems.

    Kingspan Klaregsters range of full retention separators were the first UK manufacturer to have the required 3 -30 l/sec certified to EN 858-1 in the UK. The NSF number denotes the flow at which the separator operates.

    Full Retention Separator Features

    • Designed for easy installation, saving time and money
    • Certified to EN858 - 1 and PPG3 for complete peace of mind
    • Oil alarm probe tube available (required by EN858-1 and PPG3)
    • Fitted inlet/ outlet connections
    • Vent points within necks
    • Maintenance from ground level
    • PE and GRP model construction - high strength and durability
    • CE - Marked


    Klargesters full retention separators are used in high risk spillage areas such as:

    • Fuel Distribution depots
    • Vehicle workshops
    • Scrap Yards


    NSFP006 Specifications

    • Model Reference: NSFP006
    • Material: Polyethylene Chamber Construction
    • Flow (l/s): 6
    • Drainage Area (m2) PPG-3 (0.018): 335
    • Storage Capacity (L) Silt: 600
    • Storage Capacity (L) Oil: 60
    • Length (mm): 1700
    • Diameter (mm): 1350
    • Manhole Cover Dimensions (mm): 600
    • Base Inlet Invert (mm): 1410
    • Base to Outlet invert (mm): 1335
    • Min Inlet Invert (mm): 550
    • Standard Pipework Diameter (mm): 160

    Available with Smart Commissioning

    Standard commissioning as scope of works, inc supplied and fitted (at point of commissioning) Kingspan Smartserv Pro GSM telemetry alarm for complete peace of mind.

    Smartserv alerts both Kingspan and designated contacts.  Includes 3 years Kingspan monitoring free of charge.*

    *Kingspan monitoring is for alert only.

    Service/maintenance packages are available at separate cost on request.


    How to Size a Full Retention Separator?

    To specify a nominal size full retention separator, the following information is required:

    • The calculated flow rate for the drainage area served. our designs are based on the assumption that any interconnecting pipework fitted elsewhere on site does not impede flow into or out of the separator and that the influent is not pumped.
    • The required discharge standard. This will decide which class is required.
    • The drain invert inlet depth
    • Pipework type, size and orientation
